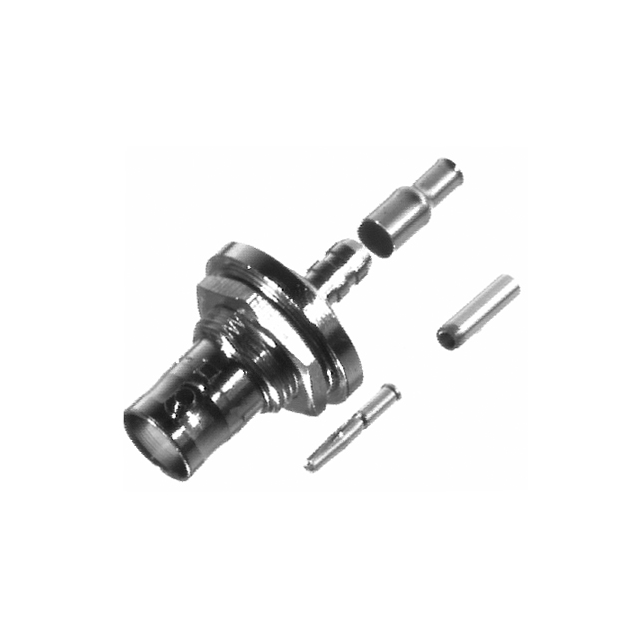

RFB-1117 Series
Manufacturer: RF Industries
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
BNC FEMALE BH CRIMP; 50 OHMS
| Part | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Body Finish | Voltage Rating | Shield Termination | Fastening Type | Impedance | Frequency - Max | Mounting Feature | Housing Color | Connector Style | Center Contact Material | Connector Type | Number of Ports | Contact Termination | Mounting Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | 85 °C | -65 °C | Nickel | 500 V | Crimp | Bayonet Lock | 50 Ohm | 4 GHz | Bulkhead Front Side Nut | Silver | BNC | Phosphor Bronze | Female Socket Jack | 1 | Crimp | Panel Mount | |
 RF Industries | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | 500 V | Crimp | Bayonet Lock | 50 Ohm | 4 GHz | Bulkhead Front Side Nut | Silver | BNC | Brass | Female Socket Jack | 1 | Crimp | Panel Mount | 0.2 dB |
