AMPMODU MT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS HSG DUAL 24P 30-26

Part	Cable Termination	Features	Contact Type	Row Spacing	Row Spacing	Connector Type	Number of Positions	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Color	Pitch	Pitch	Mounting Type	Wire Type	For Use With/Related Products	Accessory Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [custom]

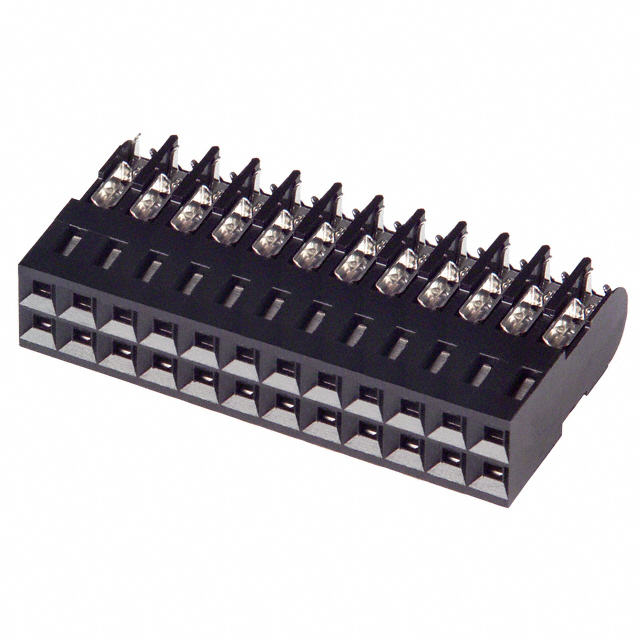

TE Connectivity AMP Connectors 6-102393-0	IDC	Closed End	Female Socket	2.54 mm	0.1 "	Receptacle	24	2	30 Áin	0.76 Ám	26 AWG	30 AWG	Gold	Black	0.1 "	2.54 mm	Free Hanging (In-Line)	Discrete Ribbon Cable
TE Connectivity AMP Connectors 102536-4							12												AMPMODU MT Series	Cap (Cover)

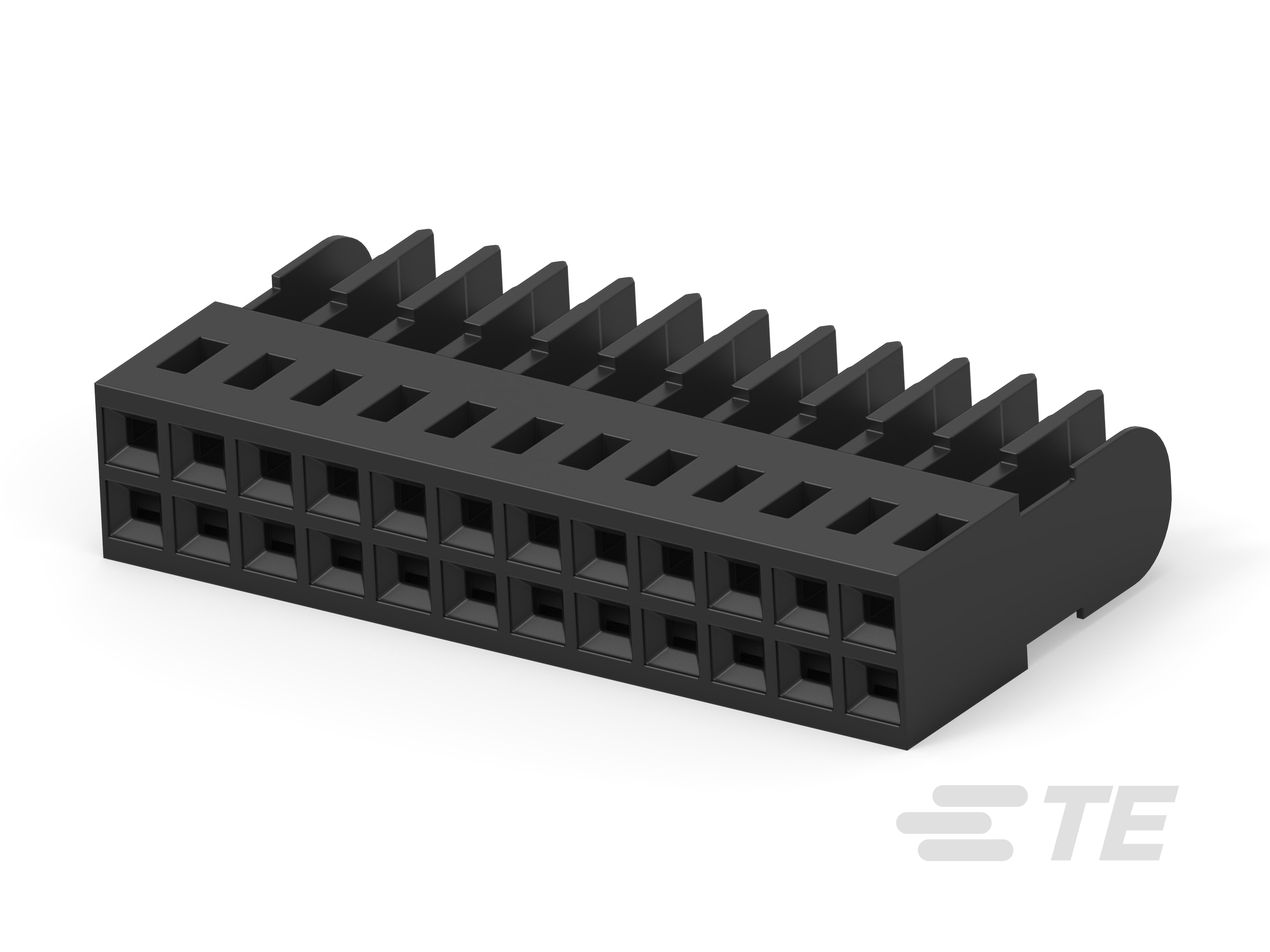

TE Connectivity AMP Connectors 1-102394-0			Female Socket	2.54 mm	0.1 "	Receptacle	24	2						Black	0.1 "	2.54 mm	Free Hanging (In-Line)				IDC	105 ░C	-65 ░C
TE Connectivity AMP Connectors 2-829376-6

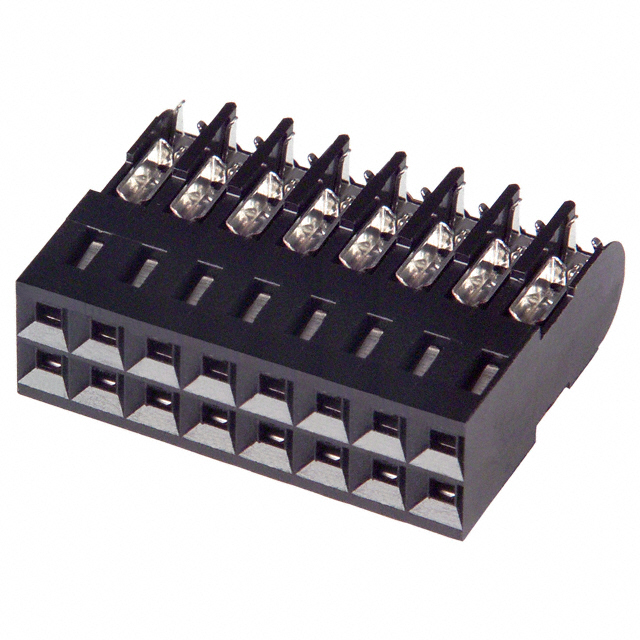

TE Connectivity AMP Connectors 5-102398-2	IDC	Closed End	Female Socket	2.54 mm	0.1 "	Receptacle	8	2	30 Áin	0.76 Ám	22 AWG	26 AWG	Gold	Black	0.1 "	2.54 mm	Free Hanging (In-Line)	Discrete Ribbon Cable

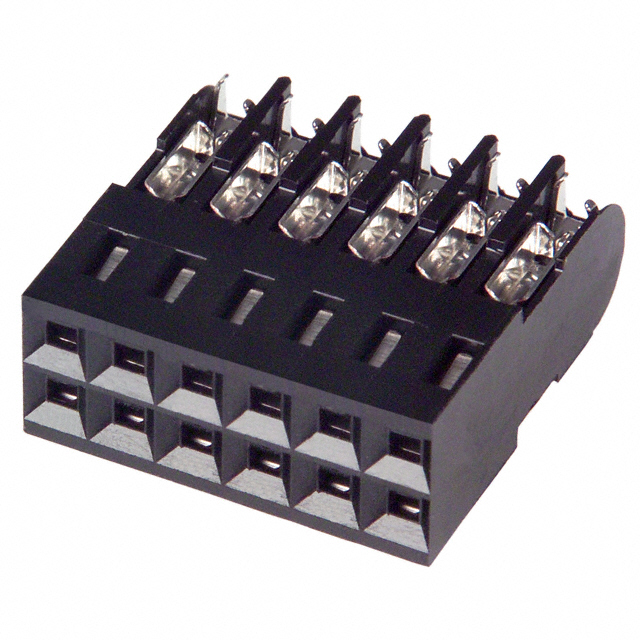

TE Connectivity AMP Connectors 5-102694-4	IDC	Closed End	Female Socket	2.54 mm	0.1 "	Receptacle	12	2	30 Áin	0.76 Ám	22 AWG	26 AWG	Gold	Black	0.1 "	2.54 mm	Free Hanging (In-Line)	Discrete Ribbon Cable
TE Connectivity AMP Connectors 102398-8	IDC	Closed End	Female Socket	2.54 mm	0.1 "	Receptacle	20	2	30 Áin	0.76 Ám	22 AWG	26 AWG	Gold	Black	0.1 "	2.54 mm	Free Hanging (In-Line)	Discrete Ribbon Cable

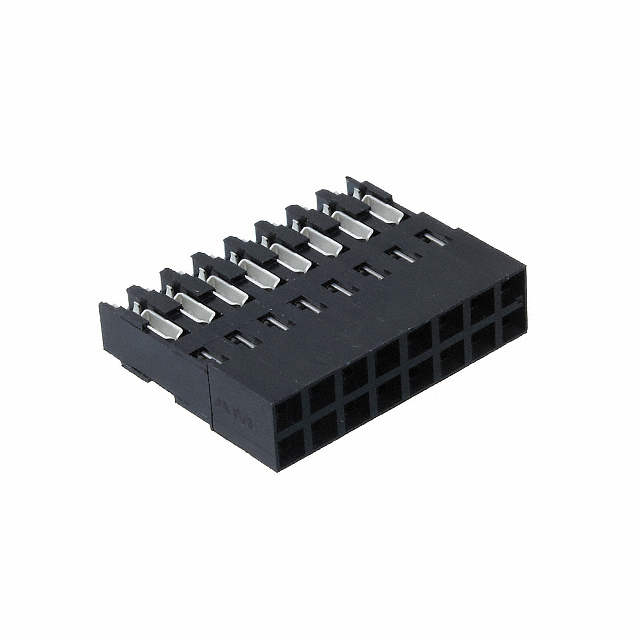

TE Connectivity AMP Connectors 1-5102935-2	IDC		Female Socket	3.18 mm	0.125 in	Receptacle	16	2	50 µin	1.27 µm	22 AWG	26 AWG	Gold		0.125 in	3.18 mm	Free Hanging (In-Line)	Discrete

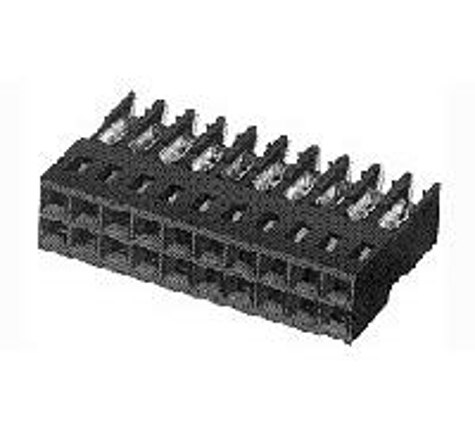

TE Connectivity AMP Connectors 102394-2			Female Socket	2.54 mm	0.1 "	Receptacle	8	2						Black	0.1 "	2.54 mm	Free Hanging (In-Line)				IDC	105 ░C	-65 ░C
TE Connectivity AMP Connectors 5-104305-2	IDC	Closed End	Female Socket	2.54 mm	0.1 "	Receptacle		2	50 µin	1.27 µm	22 AWG	26 AWG	Gold	Black	0.1 "	2.54 mm	Free Hanging (In-Line)	Discrete Ribbon Cable						34
