9S0612 Series

Catalog

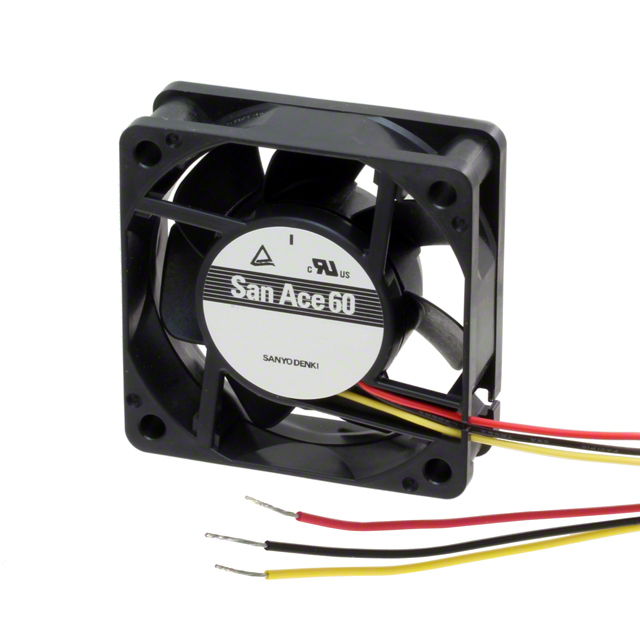

FAN: DC; AXIAL; 12VDC; 60X60X25MM; 34.8M3/H; 24DBA; BALL; 3900RPM

Part	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	RPM	Power (Watts)	Static Pressure	Static Pressure	Termination	Bearing Type	Noise	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Weight [custom]	Weight [custom]	Voltage - Rated	Features
Sanyo Denki America Inc. 9S0612H402	40000 Hrs	Plastic	110 mA	Plastic	5 VDC	13.8 VDC	CSA TUV UL	3900 RPM	1.32 W	39.8 Pa	0.16 in H2O	2 Wire Leads	Ball	24 dB	60 mm	60 mm	20.5 CFM	0.574 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC
Sanyo Denki America Inc. 9S0612P4M01	40000 Hrs	Plastic	70 mA	Plastic	6 VDC	13.8 VDC	CSA TUV UL	2700 RPM	840 mW	19.9 Pa	0.08 in H2O	4 Wire Leads	Ball	16 dB	60 mm	60 mm	14.1 CFM	0.395 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9S0612M402	40000 Hrs	Plastic	70 mA	Plastic	6 VDC	13.8 VDC	CSA TUV UL	2700 RPM	840 mW	19.9 Pa	0.08 in H2O	2 Wire Leads	Ball	16 dB	60 mm	60 mm	14.1 CFM	0.395 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC
Sanyo Denki America Inc. 9S0612S4011	40000 Hrs	Plastic	0.2 A	Plastic	5 VDC	13.8 VDC	CSA TUV UL	5000 RPM	2.4 W	64.8 Pa	0.26 in H2O	3 Wire Leads	Ball	31 dB(A)	60 mm	60 mm	26.1 CFM	0.731 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9S0612M4021	40000 Hrs	Plastic	70 mA	Plastic	6 VDC	13.8 VDC	CSA TUV UL	2700 RPM	840 mW	19.9 Pa	0.08 in H2O	2 Wire Leads	Ball	16 dB	60 mm	60 mm	14.1 CFM	0.395 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC
Sanyo Denki America Inc. 9S0612F402	40000 Hrs	Plastic		Plastic	6 VDC	13.8 VDC	CSA TUV UL	3300 RPM	960 mW	29.9 Pa	0.12 in H2O	2 Wire Leads	Ball	20 dB	60 mm	60 mm	17.3 CFM	0.484 mł/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC
Sanyo Denki America Inc. 9S0612F4011	40000 Hrs	Plastic		Plastic	6 VDC	13.8 VDC	CSA TUV UL	3300 RPM	960 mW	29.9 Pa	0.12 in H2O	3 Wire Leads	Ball	20 dB	60 mm	60 mm	17.3 CFM	0.484 mł/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC	Speed Sensor (Tach)
Sanyo Denki America Inc. 9S0612S402	40000 Hrs	Plastic	0.2 A	Plastic	5 VDC	13.8 VDC	CSA TUV UL	5000 RPM	2.4 W	64.8 Pa	0.26 in H2O	2 Wire Leads	Ball	31 dB(A)	60 mm	60 mm	26.1 CFM	0.731 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC
Sanyo Denki America Inc. 9S0612F401	40000 Hrs	Plastic		Plastic	6 VDC	13.8 VDC	CSA TUV UL	3300 RPM	960 mW	29.9 Pa	0.12 in H2O	3 Wire Leads	Ball	20 dB	60 mm	60 mm	17.3 CFM	0.484 mł/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC	Speed Sensor (Tach)
Sanyo Denki America Inc. 9S0612H401	40000 Hrs	Plastic	110 mA	Plastic	5 VDC	13.8 VDC	CSA TUV UL	3900 RPM	1.32 W	39.8 Pa	0.16 in H2O	3 Wire Leads	Ball	24 dB	60 mm	60 mm	20.5 CFM	0.574 m³/min	25 mm	70 °C	-10 °C	Tubeaxial	0.122 lb	55.34 g	12 VDC	Speed Sensor (Tach)
