123-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 40POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Housing Material	Contact Finish - Mating	Features	Contact Material - Post	Pitch - Mating	Pitch - Mating	Type [custom]	Type [custom]	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Type	Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

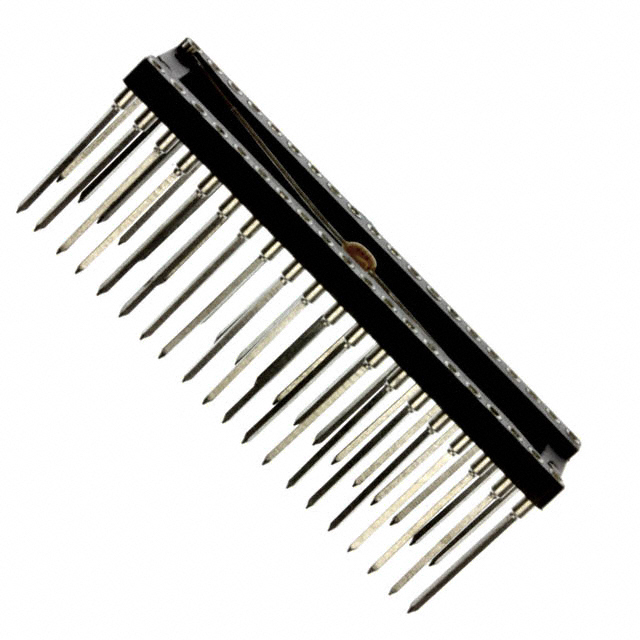

Mill-Max Manufacturing Corp. 123-93-640-41-801000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Decoupling Capacitor Open Frame	Brass Alloy	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP	0.76 Ám	30 Áin	40	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole

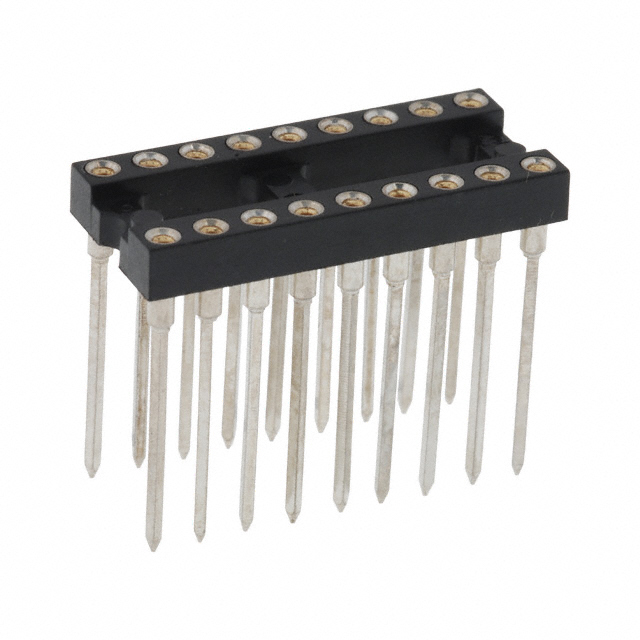

Mill-Max Manufacturing Corp. 123-93-318-41-001000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	18	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole	7.62 mm	0.3 in

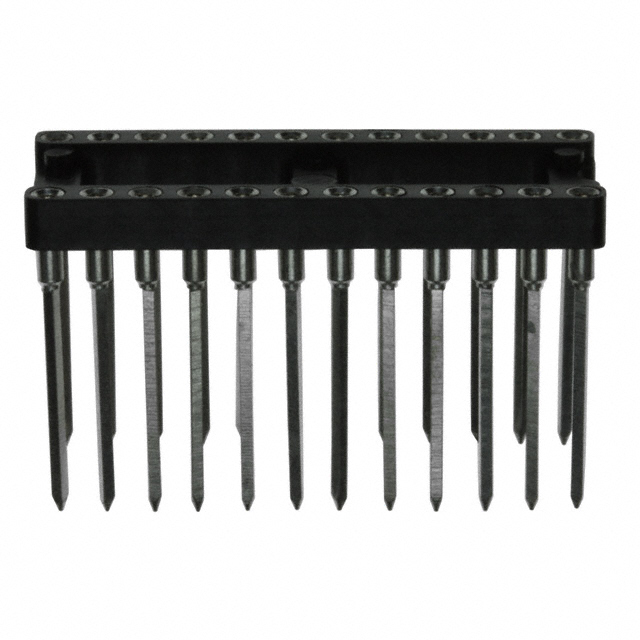

Mill-Max Manufacturing Corp. 123-93-424-41-001000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	24	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole		0.4 in	12	2

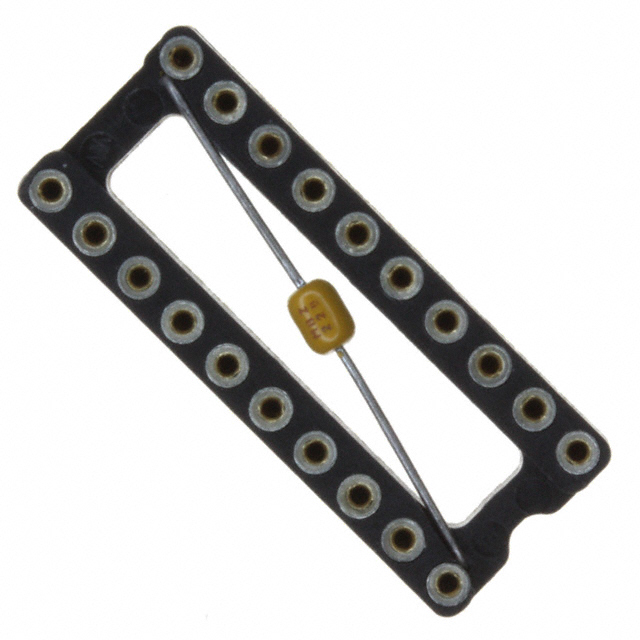

Mill-Max Manufacturing Corp. 123-93-320-41-801000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Decoupling Capacitor Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	20	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole	7.62 mm	0.3 in

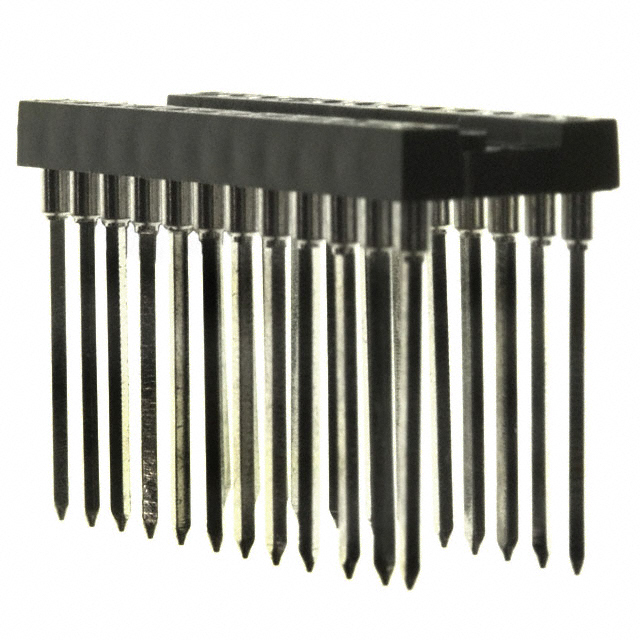

Mill-Max Manufacturing Corp. 123-93-324-41-001000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	24	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole	7.62 mm	0.3 in	12	2

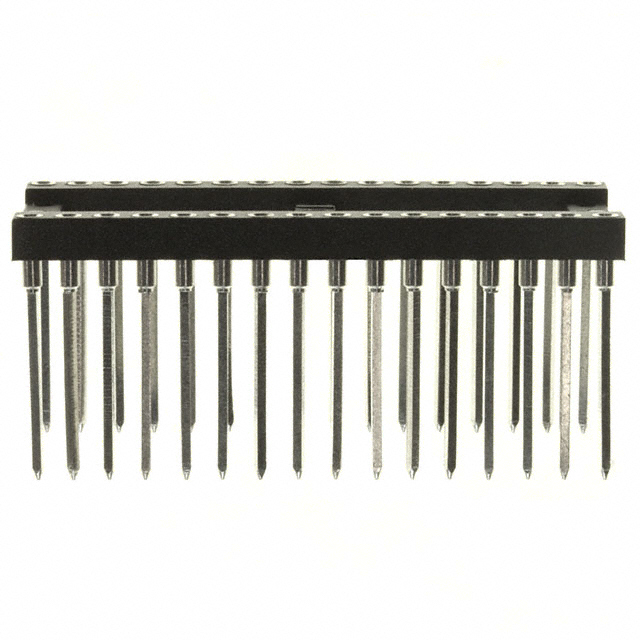

Mill-Max Manufacturing Corp. 123-93-632-41-001000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Open Frame	Brass Alloy	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP	0.76 Ám	30 Áin	32	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole

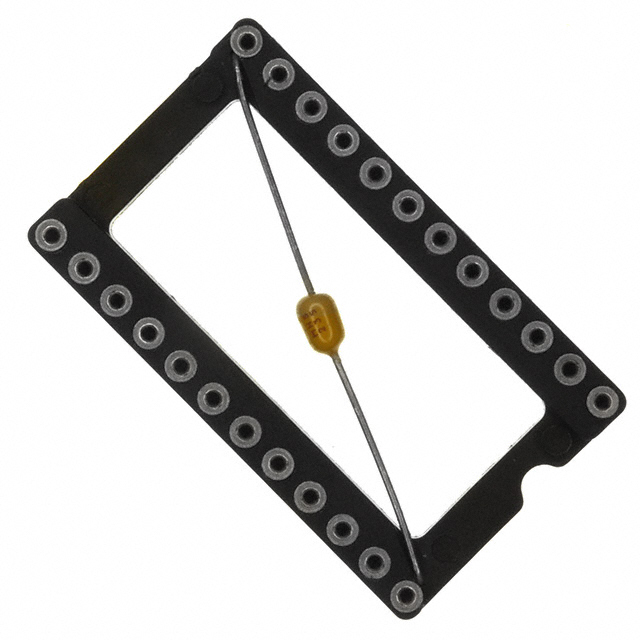

Mill-Max Manufacturing Corp. 123-93-624-41-801000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Decoupling Capacitor Open Frame	Brass Alloy	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP	0.76 Ám	30 Áin	24	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole			12	2

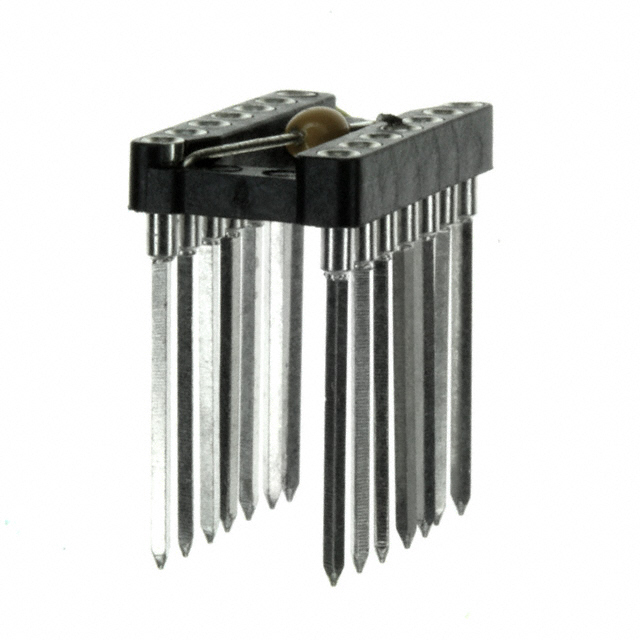

Mill-Max Manufacturing Corp. 123-93-314-41-801000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Decoupling Capacitor Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	14	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole	7.62 mm	0.3 in
Mill-Max Manufacturing Corp. 123-93-628-41-801000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Decoupling Capacitor Open Frame	Brass Alloy	0.1 "	2.54 mm	15.24 mm	0.6 in	DIP	0.76 Ám	30 Áin	28	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole

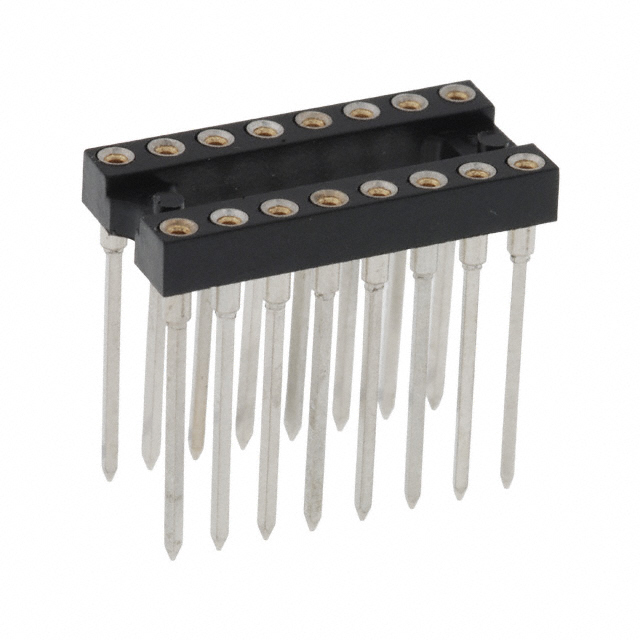

Mill-Max Manufacturing Corp. 123-93-316-41-001000	12.95 mm	0.51 "	3 A	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Open Frame	Brass Alloy	0.1 "	2.54 mm			DIP	0.76 Ám	30 Áin	16	Tin-Lead	200 µin	5.08 µm	Beryllium Copper	0.1 in	2.54 mm	-55 C	125 °C	Wire Wrap	Through Hole	7.62 mm	0.3 in			2	8
