SQM Series

Manufacturer: YAGEO

Catalog

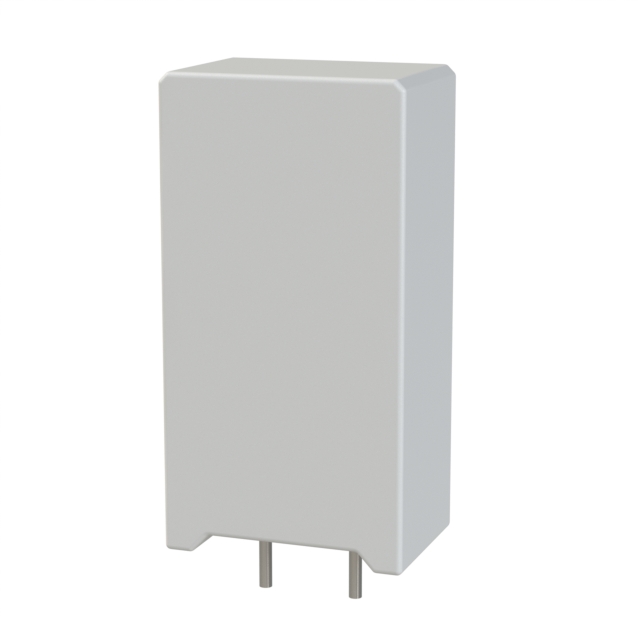

WIREWOUND RESISTORS - THROUGH HOLE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Features	Power (Watts)	Supplier Device Package	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Resistance	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
YAGEO SQM700JB-27K	155 C	-55 C	Ceramic	Anti-Arc Flame Proof Moisture Resistant Safety	7 W	Radial Lead	Radial	9 mm	13 mm	0.354 in	0.512 "	300 ppm/°C	27 kOhms	2	40.5 mm	1.594 in	5 %
YAGEO SQM500JB-330R	155 C	-55 C	Ceramic	Anti-Arc Flame Proof Moisture Resistant Safety	5 W		Radial	9 mm	13 mm	0.354 in	0.512 "	300 ppm/°C	330 Ohms	2			5 %	26.5 mm	1.043 in
