SGA60E24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

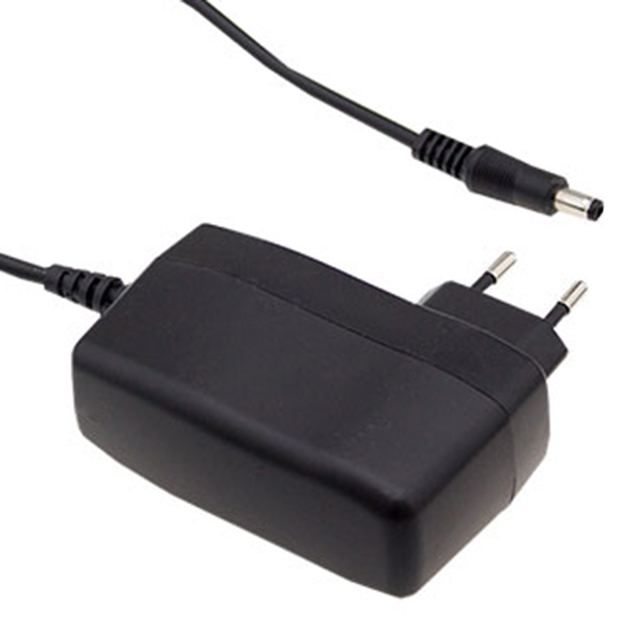

AC/DC WALL MOUNT ADAPTER 24V 60W
| Part | Power (Watts) | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Region Utilized | Input Type | Output Connector [x] | Output Connector [diameter] | Output Connector | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Form | No Load Power Consumption | Applications | Cord Length | Cord Length | Efficiency | Input Connector | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 60 W | 24 V | 264 VAC | 90 VAC | 2.5 A | Positive Center | -20 ░C | 50 °C | Europe | Fixed Blade | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 35 mm | 3.68 " | 51.5 mm | 1.38 in | 93.5 mm | 2.03 in | Wall Mount | 150 mW | ITE (Commercial) | 1.5 m | 59 in | Level VI | CEE 7/16 | CB CE GS |
