FDMS7700S Series

Dual N-Channel PowerTrench® MOSFET 30V

Catalog

Dual N-Channel PowerTrench® MOSFET 30V

Part	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Power - Max [Max]	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Configuration	Package / Case	FET Feature	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Supplier Device Package

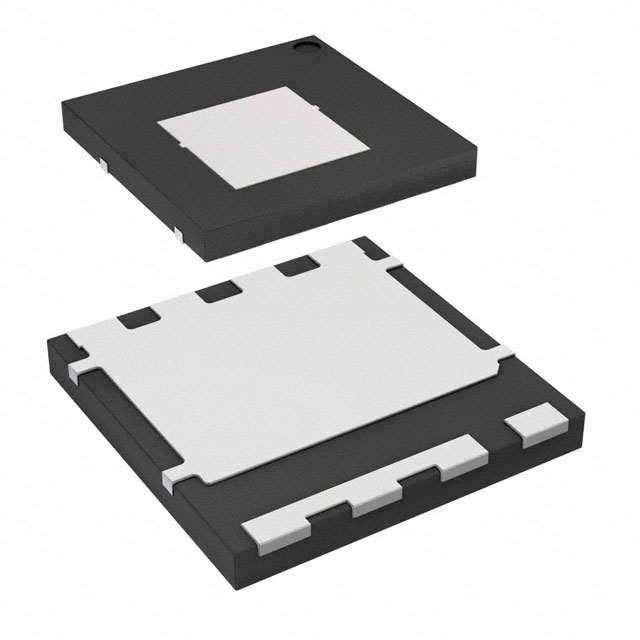

ON Semiconductor FDMS7700S	Surface Mount	1750 pF	3 V	1 W	MOSFET (Metal Oxide)	-55 °C	150 °C	28 nC	7.5 mOhm	2 N-Channel (Dual)	8-PowerWDFN	Logic Level Gate	12 A 22 A	30 V	Power56

Catalog

Dual N-Channel PowerTrench® MOSFET 30V

Key Features

• Q1:N-ChannelMax. RDS(on)= 7.5 mΩ at VGS= 10 V, ID= 12 AMax. RDS(on)= 12 mΩ at VGS= 4.5 V, ID= 10 A

• Q2:N-ChannelMax. RDS(on)= 2.4 mΩ at VGS= 10 V, ID= 20 AMax. RDS(on)= 2.9 mΩ at VGS= 4.5 V, ID= 18 A

• RoHS Compliant

Description

This device includes two specialized N-Channel MOSFETs in a dual MLP package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous SyncFET™ (Q2) have been designed to provide optimal power efficiency.
