M39071 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

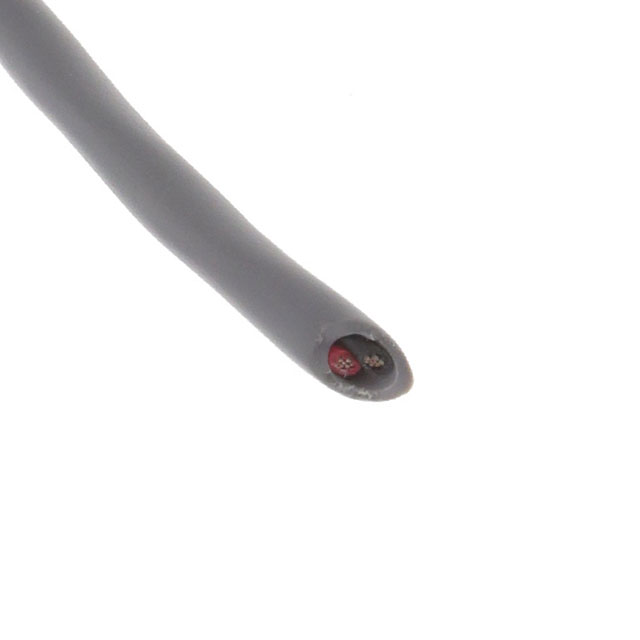

CABLE 2COND 22AWG SLATE
| Part | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Conductor Insulation | Cable Type | Number of Conductors | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 100 ft | 30.5 m | 0.038 in | 0.965 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 2 | Slate | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | 28 AWG | 7 | 0.203 in | 5.16 mm | 300 VDC | ||
ALPHA WIRE | Copper Tinned | 0.038 in | 0.965 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 2 | Slate | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | 28 AWG | 7 | 0.203 in | 5.16 mm | 300 VDC | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned | 0.038 in | 0.965 mm | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 2 | Slate | -20 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 22 AWG | 28 AWG | 7 | 0.203 in | 5.16 mm | 300 VDC | 914.4 m | 3000 ' |
