TPS92001 Series
Manufacturer: Texas Instruments
Beta
⌘K
GENERAL-PURPOSE PWM CONTROLLER WITH 10V TURN-ON THRESHOLD FOR LED LIGHTING
| Part | Type | Supplier Device Package | Frequency | Number of Outputs | Internal Switch(s) | Voltage - Output | Voltage - Supply (Max) [Max] | Applications | Topology | Mounting Type | Package / Case | Package / Case [y] | Package / Case [x] | Operating Temperature [custom] | Dimming | Current - Output / Channel | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Utilized IC / Part | Features | Outputs and Type | Outputs and Type | Package / Case [custom] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | AC DC Offline Switcher | 8-SOIC | 100 kHz | 1 | 5 V | 21 V | Lighting | Flyback Step-Down (Buck) | Surface Mount | 8-SOIC | 3.9 mm | 0.154 in | -40 °C 105 °C | TRIAC | |||||||||||

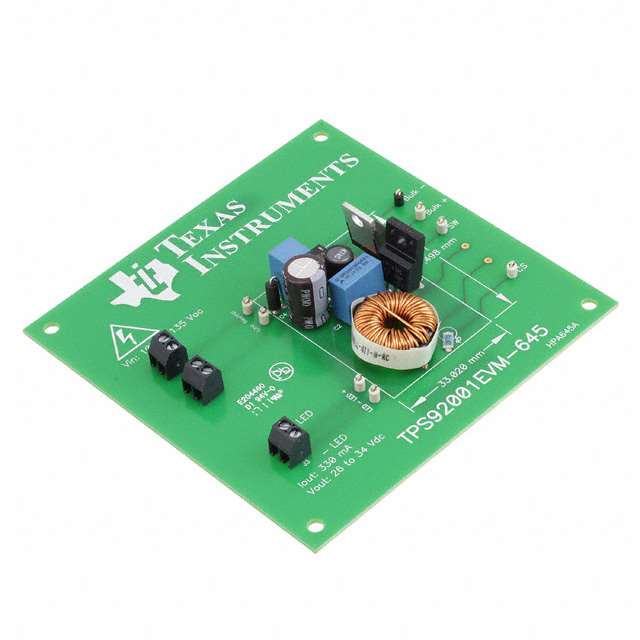

 Texas Instruments | 30 VDC | 330 mA | 135 VAC | 105 VAC | Board(s) | TPS92001 | Dimmable | Non-Isolated | 1 | ||||||||||||||||
 Texas Instruments | AC DC Offline Switcher | 100 kHz | 1 | 5 V | 21 V | Lighting | Flyback Step-Down (Buck) | Surface Mount | 8-MSOP 8-TSSOP | -40 °C 105 °C | TRIAC | 0.118 in | 3 mm | ||||||||||||

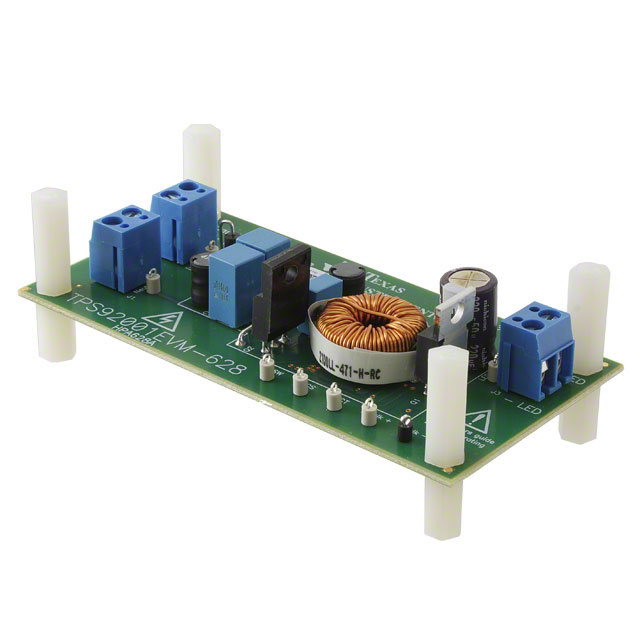

 Texas Instruments | 30 VDC | 330 mA | 135 VAC | 108 VAC | Board(s) | TPS92001 | Dimmable | Non-Isolated | 1 | ||||||||||||||||
Texas Instruments | AC DC Offline Switcher | 8-SOIC | 100 kHz | 1 | 5 V | 21 V | Lighting | Flyback Step-Down (Buck) | Surface Mount | 8-SOIC | 3.9 mm | 0.154 in | -40 °C 105 °C | TRIAC | |||||||||||
Texas Instruments | AC DC Offline Switcher | 100 kHz | 1 | 5 V | 21 V | Lighting | Flyback Step-Down (Buck) | Surface Mount | 8-MSOP 8-TSSOP | -40 °C 105 °C | TRIAC | 0.118 in | 3 mm |
