T41300 Series

Catalog

SENSOR CONNECTOR, M12, PLUG, 4 CONTACTS, SOLDER PIN, STRAIGHT PANEL MOUNT

Part	Applications	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Primary Material	Number of Positions	Shell Finish	Fastening Type	Ingress Protection	Shell Size - Insert	Connector Type	Material Flammability Rating	Color	Voltage Rating	Shielding	Orientation	Mounting Feature	Contact Finish - Mating	Shell Material
TE Connectivity AMP Connectors T4130012041-000	Industrial	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Copper Alloy	Panel Mount	85 °C	-40 C	4 A	Metal	4	Nickel	Threaded	IP67 - Dust Tight Waterproof	M12-4	Receptacle Male Pins	UL94 V-0	Silver	250 V	Unshielded	A	Bulkhead - Front Side Nut	Gold	Copper Alloy
TE Connectivity AMP Connectors T4130012031-000	Industrial	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Copper Alloy	Panel Mount	85 °C	-40 C	4 A	Metal		Nickel	Threaded	IP67 - Dust Tight Waterproof	M12-3	Receptacle Male Pins	UL94 V-0	Silver	250 V	Unshielded	A	Bulkhead - Front Side Nut	Gold	Copper Alloy

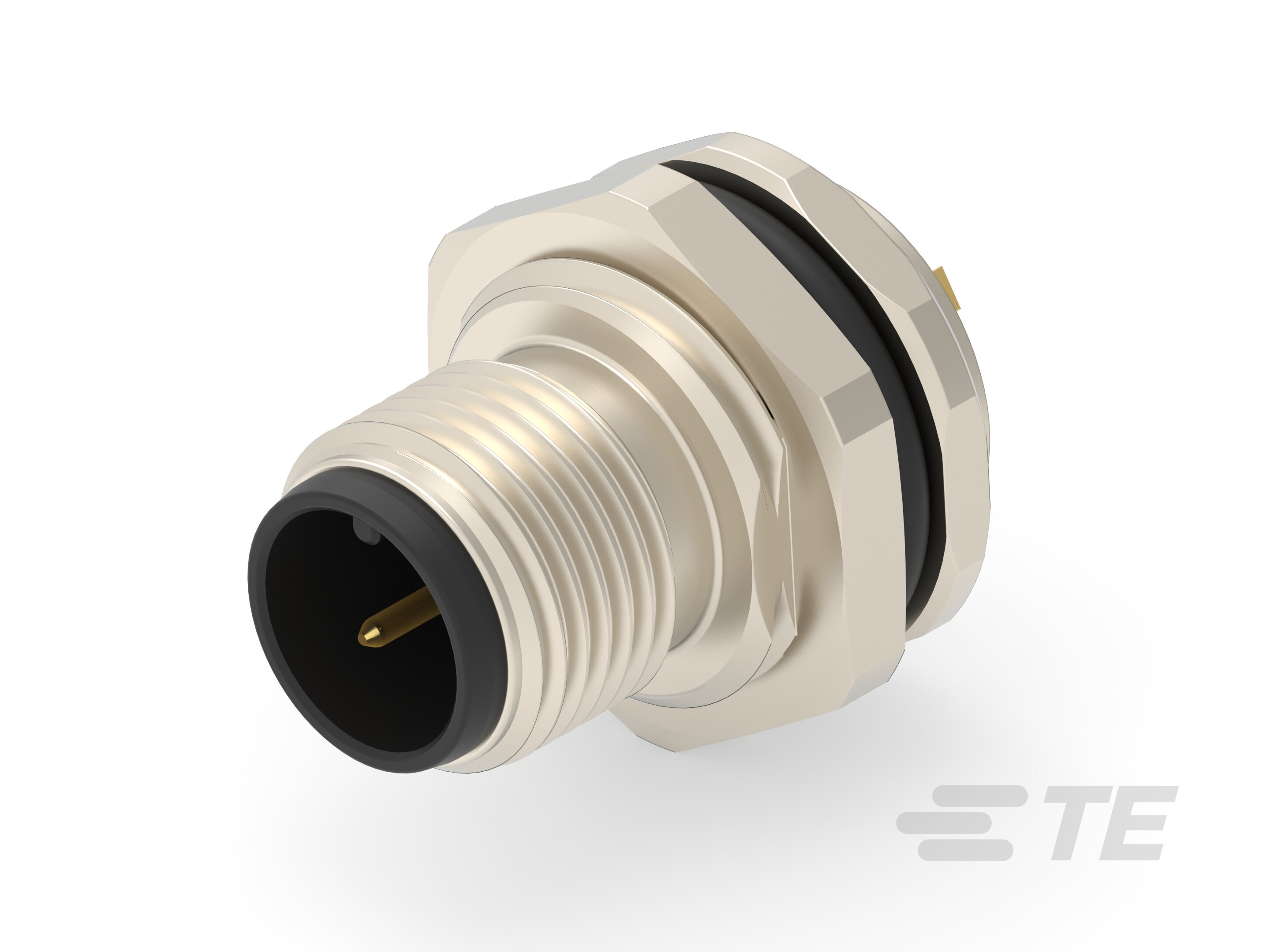

TE Connectivity AMP Connectors T4130012021-000	Industrial	Nylon 6/6 Polyamide (PA66)	0.076 µm	3 µin	Copper Alloy	Panel Mount	85 °C	-40 C	4 A	Metal	2	Nickel	Threaded	IP67 - Dust Tight Waterproof	M12-2	Receptacle Male Pins	UL94 V-0	Silver	250 V	Unshielded	A	Bulkhead - Front Side Nut	Gold	Copper Alloy
