846-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 66POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Mounting Type	Gender	Read Out	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row	Card Type	Pitch	Pitch	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Finish	Number of Positions	Features
EDAC Inc. 846-066-520-203	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
EDAC Inc. 846-066-560-807	2	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever		M3 Threaded Insert Top Mount Opening		Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66	Card Extender
EDAC Inc. 846-066-500-808	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever		4-40 Threaded Insert Top Mount Opening		Solder Eyelet(s)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
EDAC Inc. 846-066-526-803	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
EDAC Inc. 846-066-555-203	2	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Solder Eyelet(s)	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66	Card Extender
EDAC Inc. 846-066-520-802	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.128 "		3.25 mm	Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
EDAC Inc. 846-066-540-207	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever		Flush Mount M3 Threaded Insert Top Opening		Wire Wrap	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
EDAC Inc. 846-066-560-808	2	Diallyl Phthalate (DAP)	2	Board Edge Straddle Mount	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever		4-40 Threaded Insert Top Mount Opening		Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66	Card Extender

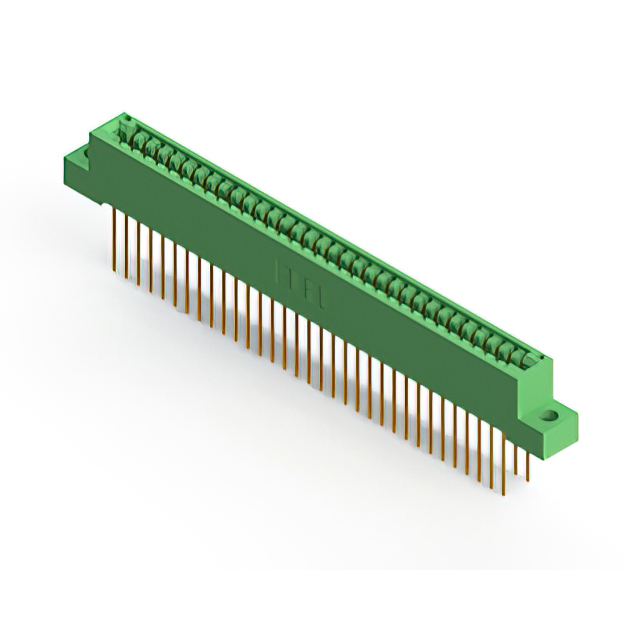

EDAC Inc. 846-066-541-204	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Wire Wrap	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66

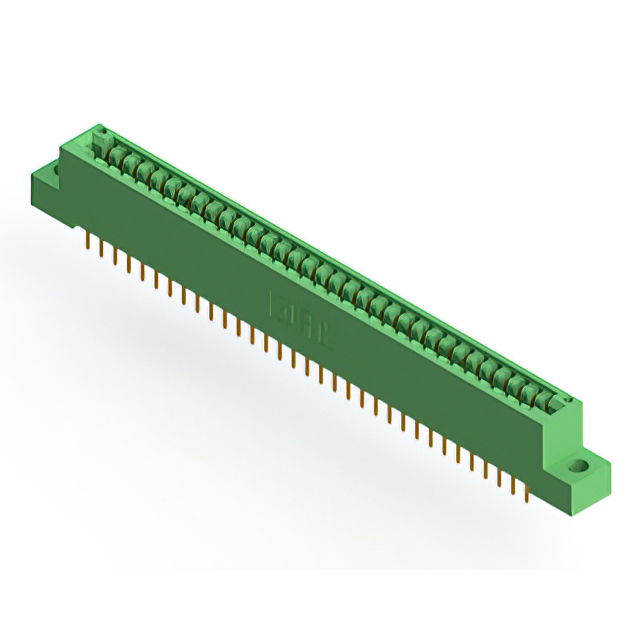

EDAC Inc. 846-066-521-204	2	Diallyl Phthalate (DAP)	2	Through Hole	Female	Dual	Green	125 °C	-40 C	33	Non Specified - Dual Edge	3.18 mm	0.125 in	Cantilever	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Solder	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Gold	66
