746-057 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 57POS 0.125

Part	Material - Insulation	Termination Rows	Card Type	Color	Number of Positions	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Read Out	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch	Pitch	Contact Finish	Contact Type
EDAC Inc. 746-057-525-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-525-501	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-527-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-520-506	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-527-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever

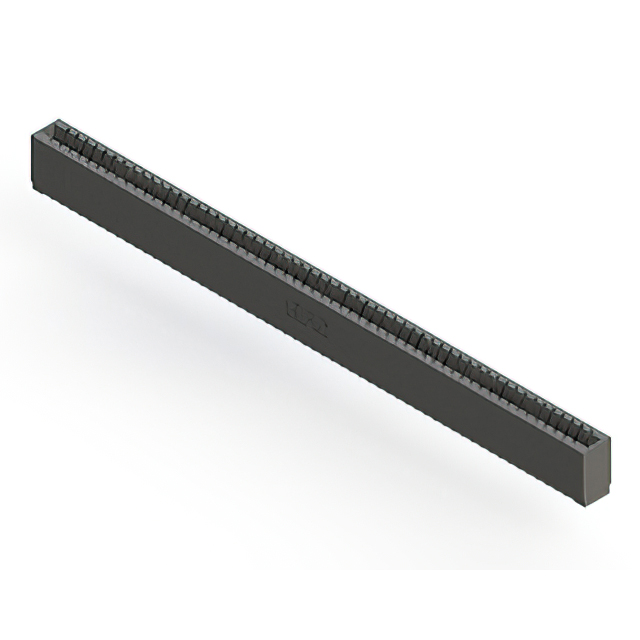

EDAC Inc. 746-057-520-501	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-545-506	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-525-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
EDAC Inc. 746-057-541-506	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	57	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	57	-40 C	105 ░C	1	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Gold	Cantilever
