TPS7A1901 Series

450-mA, 40-V, low-IQ, adjustable low-dropout voltage regulator with power good & enable

Catalog

450-mA, 40-V, low-IQ, adjustable low-dropout voltage regulator with power good & enable

Part	Voltage - Output (Min/Fixed)	Number of Regulators	Supplier Device Package	Protection Features	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Mounting Type	Current - Output	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]	Package / Case	Output Type	PSRR	Control Features	Channels per IC	Voltage - Output	Supplied Contents	Regulator Type	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Contents
Texas Instruments TPS7A1901DRBT	1.5 V	1	8-SON (3x3)	Over Current Over Temperature	-40 °C	125 °C	Positive	Surface Mount	450 mA	18 V	0.45 V	8-VDFN Exposed Pad	Adjustable	45 dB	Enable

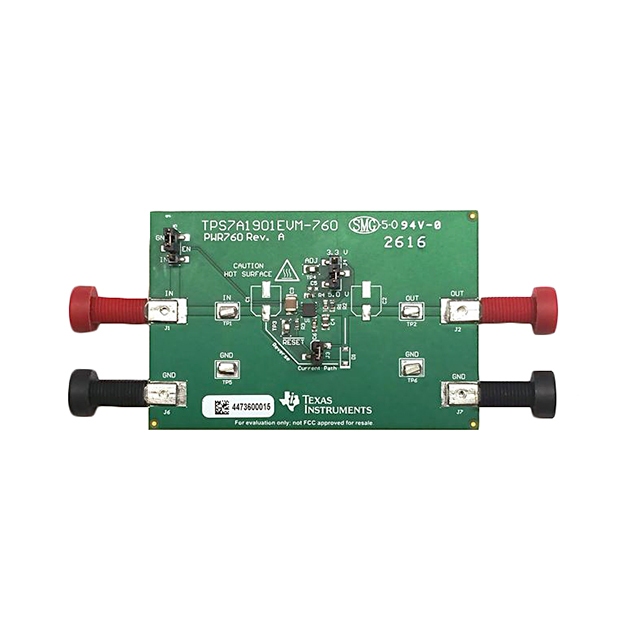

Texas Instruments TPS7A1901EVM-760									450 mA							1 - Single	3.3 V 5 V	Board(s)	Positive Adjustable	Fully Populated	4 V	40 V	TPS7A19	Board(s)

Catalog

450-mA, 40-V, low-IQ, adjustable low-dropout voltage regulator with power good & enable

Key Features

• Wide Input Voltage Range: 4 V to 40 VAdjustable Output Voltage: 1.5 V to 18 VOutput Current: 450 mALow Quiescent Current (IQ): 15 µALow Dropout Voltage: 450 mV (max) at 400 mAPower Good with Programmable DelayThermal Shutdown and Overcurrent ProtectionStable with Ceramic Output Capacitors:10 µF to 500 µF for VOUT≥ 2.5 V22 µF to 500 µF for VOUT< 2.5 VOperating Temperature: –40°C to +125°CPackage: 3-mm × 3-mm SON-8Wide Input Voltage Range: 4 V to 40 VAdjustable Output Voltage: 1.5 V to 18 VOutput Current: 450 mALow Quiescent Current (IQ): 15 µALow Dropout Voltage: 450 mV (max) at 400 mAPower Good with Programmable DelayThermal Shutdown and Overcurrent ProtectionStable with Ceramic Output Capacitors:10 µF to 500 µF for VOUT≥ 2.5 V22 µF to 500 µF for VOUT< 2.5 VOperating Temperature: –40°C to +125°CPackage: 3-mm × 3-mm SON-8

Description

The TPS7A19 is a low-dropout linear regulator (LDO) with a wide input voltage (VIN) range up to 40 V, capable of sourcing high output current (IOUT) up to 450 mA. This voltage regulator is ideal for generating a low-voltage supply from wide input-voltage rails. Not only does the TPS7A19 supply a well-regulated voltage rail, but the device also withstands and maintains regulation during voltage transients by acting as a simple surge protection circuit. The TPS7A19 consumes only 15 µA of quiescent current (IQ) at light loads, thereby lowering the power consumption for always-on or battery-powered applications. The TPS7A19 features integrated thermal shutdown and overcurrent protection. The TPS7A19 also offers a power good output (PG) with a programmable delay that indicates when the output voltage is in regulation. This feature is useful for power-rail sequencing functions. This LDO is available in a small, 3-mm × 3-mm, thermally-enhanced, 8-pin SON package. The TPS7A19 is a low-dropout linear regulator (LDO) with a wide input voltage (VIN) range up to 40 V, capable of sourcing high output current (IOUT) up to 450 mA. This voltage regulator is ideal for generating a low-voltage supply from wide input-voltage rails. Not only does the TPS7A19 supply a well-regulated voltage rail, but the device also withstands and maintains regulation during voltage transients by acting as a simple surge protection circuit. The TPS7A19 consumes only 15 µA of quiescent current (IQ) at light loads, thereby lowering the power consumption for always-on or battery-powered applications. The TPS7A19 features integrated thermal shutdown and overcurrent protection. The TPS7A19 also offers a power good output (PG) with a programmable delay that indicates when the output voltage is in regulation. This feature is useful for power-rail sequencing functions. This LDO is available in a small, 3-mm × 3-mm, thermally-enhanced, 8-pin SON package.
