PLA.M1 Series
Manufacturer: LEMO
Beta
⌘K

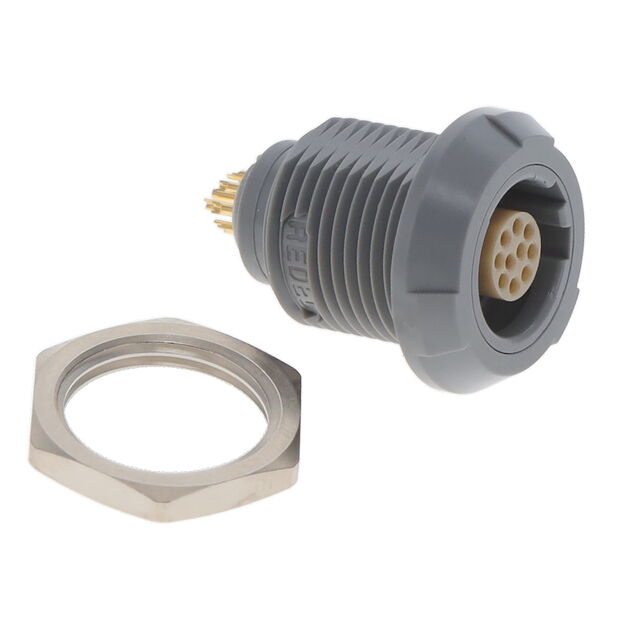

CONN RCPT FMALE 10POS GOLD SLDR
| Part | Contact Finish - Mating | Connector Type | Current Rating (Amps) | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Insert Material | Fastening Type | Mounting Feature | Termination | Ingress Protection | Applications | Color | Mounting Type | Shell Material | Orientation | Shell Size - Insert | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Gold | Receptacle Female Sockets | 3 A | Plastic | 170 °C | -50 °C | Unshielded | Polyetheretherketone (PEEK) | Detent Lock Push-Pull | Bulkhead - Front or Rear Side Nut | Solder | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Gray Green | Panel Mount Through Hole | Polyetherimide (PEI) | A | M10 | 10 |
LEMO | Gold | Receptacle Female Sockets | 3 A | Plastic | 170 °C | -50 °C | Unshielded | Polyetheretherketone (PEEK) | Detent Lock Push-Pull | Bulkhead - Rear Side Nut | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Blue Gray | Panel Mount | Polyetherimide (PEI) | A | M10 | 10 | |
LEMO | Gold | Receptacle Female Sockets | 3 A | Plastic | 170 °C | -50 °C | Unshielded | Polyetheretherketone (PEEK) | Detent Lock Push-Pull | Bulkhead - Rear Side Nut | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Panel Mount | Polyetherimide (PEI) | A | M10 | 10 | |
LEMO | Gold | Receptacle Female Sockets | 2 A | Plastic | 170 °C | -50 °C | Unshielded | Polyetheretherketone (PEEK) | Detent Lock Push-Pull | Bulkhead - Rear Side Nut | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Gray Green | Panel Mount | Polyetherimide (PEI) | A | M14 | 14 | |
 LEMO | Gold | Receptacle Female Sockets | 3 A | Plastic | 150 °C | -50 °C | Unshielded | Polyetheretherketone (PEEK) | Detent Lock Push-Pull | Bulkhead - Rear Side Nut | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Panel Mount | Polysulfone (PSU) | A | M10 | 10 |
