NCV70516 Series

Catalog

IC MICRO STEPPER MOTOR DRIVER

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Interface	Current - Output	Mounting Type	Motor Type - AC, DC	Step Resolution	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Supplier Device Package	Qualification	Voltage - Load [Max]	Voltage - Load [Min]	Technology	Motor Type - Stepper	Step Resolution [Max]	Step Resolution [Min]

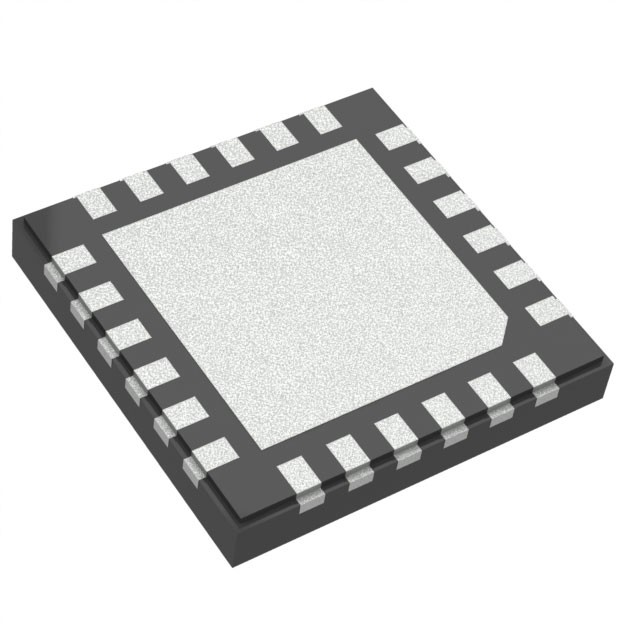

ON Semiconductor NCV70516MW0R2G	Automotive	-40 C	145 °C	24-VQFN Exposed Pad	SPI Step/Direction	1.1 A	Surface Mount Wettable Flank	Brushed DC	1 1/16 1/2 1/4 1/8	Driver - Fully Integrated Control and Power Stage	6 V	29 V	Half Bridge (2)	24-QFN (5x5)	AEC-Q101	5.5 V	0 V	NMOS PMOS	Bipolar
ON Semiconductor NCV70516MW1AR2G	Automotive	-40 C	145 °C	24-VQFN Exposed Pad	SPI Step/Direction	1.1 A	Surface Mount Wettable Flank			Driver - Fully Integrated Control and Power Stage	6 V	29 V	Half Bridge (2)	24-QFNW (5x5)	AEC-Q101	5.5 V	0 V	NMOS PMOS	Bipolar	0.0625	1
