5690101 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM 2X2 GRN/RED RA

Part	Color	Viewing Angle	Wavelength - Peak	Mounting Type	Configuration [y]	Configuration [z]	Lens Style	Millicandela Rating	Lens Size	Lens Size	Voltage Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size [diameter]	Lens Type	Current	Millicandela Rating [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]
DIALIGHT 5690101212F	Green (x 2) Red (x 2)	60 °	565 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top	10 mcd 12.6 mcd	3 mm	T-1	2 V 2.1 V
DIALIGHT 5690101801F				Right Angle Through Hole			Round with Domed Top		3 mm	T-1
DIALIGHT 5690101732F	Green (x 1) Orange (x 1) Red (x 1) Yellow (x 1)	60 °	565 nm 585 nm 600 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top				2 V 2.1 V 2.1 V 2.2 V	10 mcd	7 mcd	12.6 mcd	10 mcd	3 mm
DIALIGHT 5690101232F	Green (x 2) Red (x 1) Yellow (x 1)	60 °	565 nm 585 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top	10 mcd 10 mcd 12.6 mcd			2 V 2.1 V 2.1 V					3 mm
DIALIGHT 5690101111F	Red (x 4)	60 °	635 nm	Right Angle Through Hole	2	2	Round with Domed Top	10 mcd			2 V					3 mm	Diffused Tinted	20 mA
DIALIGHT 5690101970F			428 nm 600 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top		3 mm	T-1	2 V 2.2 V 3.5 V	10 mcd	7 mcd						12.5 mcd	60 °	60 °	70 °
DIALIGHT 5690101237F	Green (x 1) Orange (x 1) Red (x 1) Yellow (x 1)	60 °	565 nm 585 nm 600 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top		3 mm	T-1	2 V 2.1 V 2.1 V 2.2 V	10 mcd	7 mcd	12.6 mcd	10 mcd

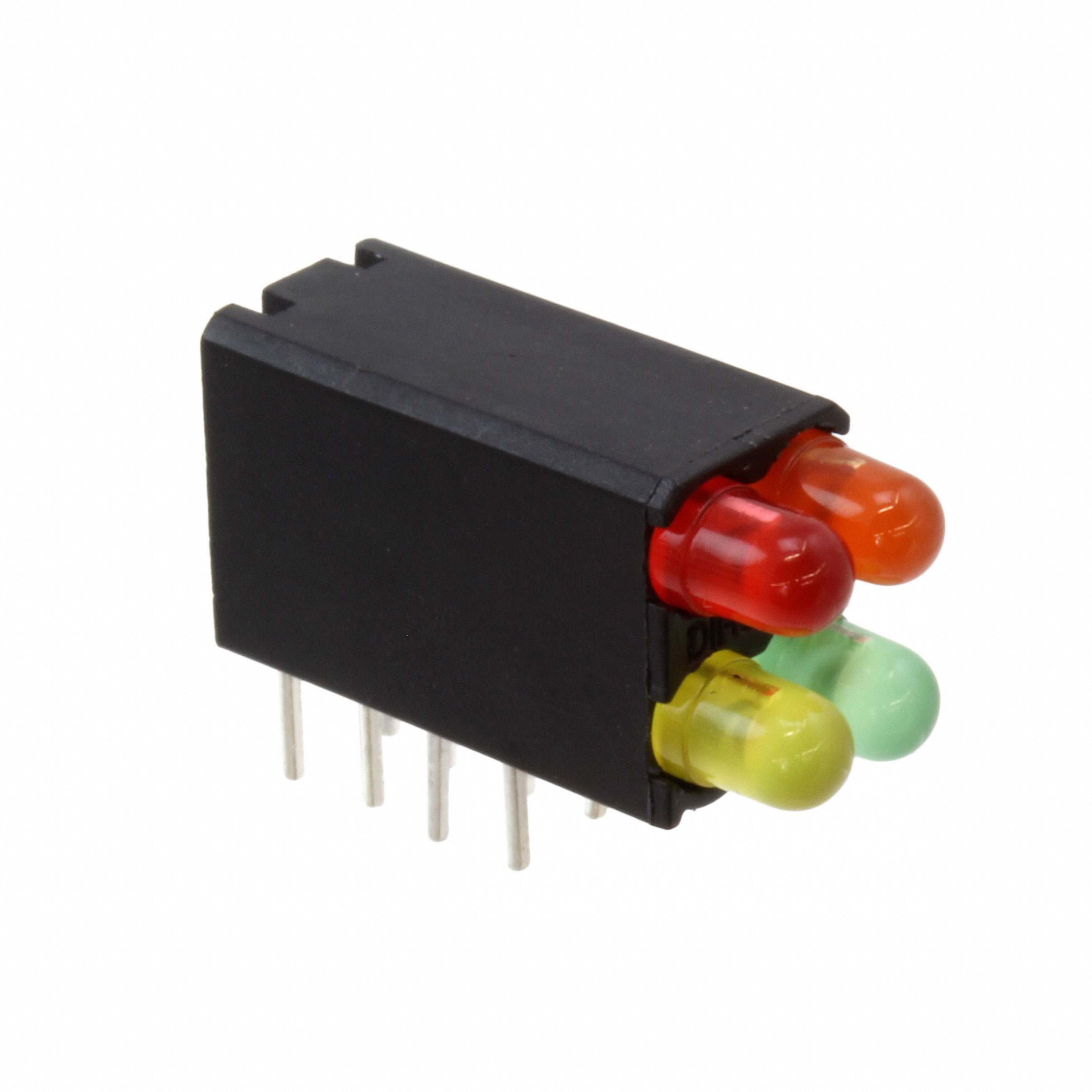

DIALIGHT 5690101372F	Green (x 1) Orange (x 1) Red (x 1) Yellow (x 1)	60 °	565 nm 585 nm 600 nm 635 nm	Right Angle Through Hole	2	2	Round with Domed Top		3 mm	T-1	2 V 2.1 V 2.1 V 2.2 V	10 mcd	7 mcd	12.6 mcd	10 mcd
