C3BBG-1 Series

Catalog

IDC CABLE - CSR14G/AE14G/CSR14G

Part	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length	Length	Length	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Contact Finish	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color
CW Industries C3BBG-1406G	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded	152.4 mm	0.5 '	6 "	IDC	14	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm
CW Industries C3BBG-1018M	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded				IDC	10	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple Ribbon

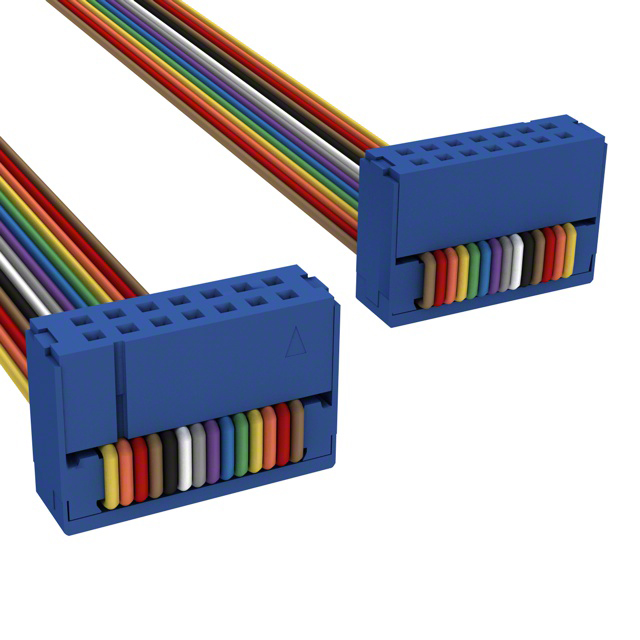

CW Industries C3BBG-1436M	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded	91.44 cm	3 ft		IDC	14	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm			Multiple Ribbon
CW Industries C3BBG-1006G	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded	152.4 mm	0.5 '	6 "	IDC	10	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm
CW Industries C3BBG-1006M	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded	152.4 mm	0.5 '	6 "	IDC	10	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm			Multiple Ribbon

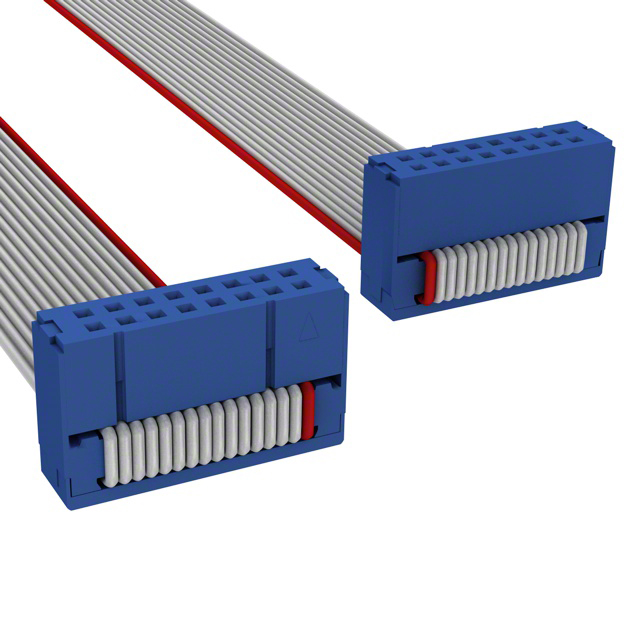

CW Industries C3BBG-1636G	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded	91.44 cm	3 ft		IDC	16	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm
CW Industries C3BBG-1618M	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded				IDC	16	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3BBG-1018G	Socket to Socket	Strain Relief	0.25 Ám	10 Áin	Unshielded				IDC	10	0.05 in	1.27 mm	2	Gold	0.1 in	2.54 mm	457.2 mm	1.5 ft
