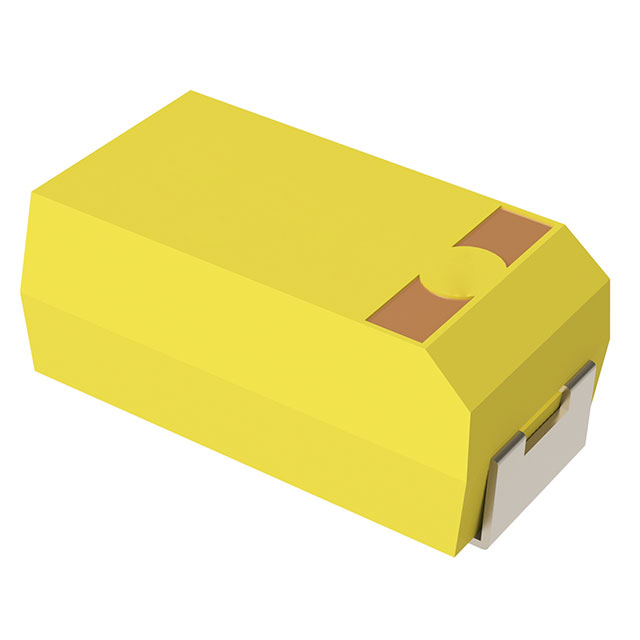

T541D Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 150UF 10V 2917

Part	Voltage - Rated	Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Manufacturer Size Code	Features	Package / Case	Lifetime @ Temp.	Tolerance	ESR (Equivalent Series Resistance)
KEMET T541D157M010AH6510	10 V	Molded	-55 C	125 °C	0.122 in	3.1 mm	150 µF	Surface Mount	COTS	0.169 "	7.3 mm	0.287 "	4.3 mm	D	High Reliability	2917 (7343 Metric)	2000 Hrs	20 %	10 mOhm
KEMET T541D227M010AH6620	10 V	Molded	-55 C	125 °C	0.122 in	3.1 mm	220 µF	Surface Mount	COTS	0.169 "	7.3 mm	0.287 "	4.3 mm	D	High Reliability	2917 (7343 Metric)	2000 Hrs	20 %	6 mOhm
KEMET T541D227M010AH6720	10 V	Molded	-55 C	125 °C	0.122 in	3.1 mm	220 µF	Surface Mount	COTS	0.169 "	7.3 mm	0.287 "	4.3 mm	D	High Reliability	2917 (7343 Metric)	2000 Hrs	20 %	6 mOhm
KEMET T541D157M010AH6720	10 V	Molded	-55 C	125 °C	0.122 in	3.1 mm	150 µF	Surface Mount	COTS	0.169 "	7.3 mm	0.287 "	4.3 mm	D	High Reliability	2917 (7343 Metric)	2000 Hrs	20 %	6 mOhm
