292229 Series

Catalog

1.5 MINI CT D/R SMT 28P V ONTA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Termination	Contact Finish - Post	Connector Type	Number of Rows	Voltage Rating	Contact Type	Current Rating (Amps)	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Insulation Color	Applications	Style	Number of Positions Loaded	Features	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Shrouding	Contact Material
TE Connectivity Raychem Cable Protection 2-292229-8	-30 ░C	105 ░C	Square	Solder	Tin	Header	2	50 VAC	Male Pin	Varies by Wire Gauge	Detent Lock	0.114 in	2.9 mm	28	0.079 in	2 mm	Glass Filled Nylon Polyamide (PA)	Beige	General Purpose	Board to Cable/Wire	All	Board Guide	Surface Mount	UL94 V-0	7.4 mm	0.291 in	Shrouded - 4 Wall	Brass
TE Connectivity Raychem Cable Protection 4-292229-0	-30 ░C	105 ░C	Square	Solder	Tin	Header	2	50 VAC	Male Pin	Varies by Wire Gauge	Detent Lock	0.114 in	2.9 mm	40	0.079 in	2 mm	Glass Filled Nylon Polyamide (PA)	Beige	General Purpose	Board to Cable/Wire	All	Board Guide	Surface Mount	UL94 V-0	7.4 mm	0.291 in	Shrouded - 4 Wall	Brass

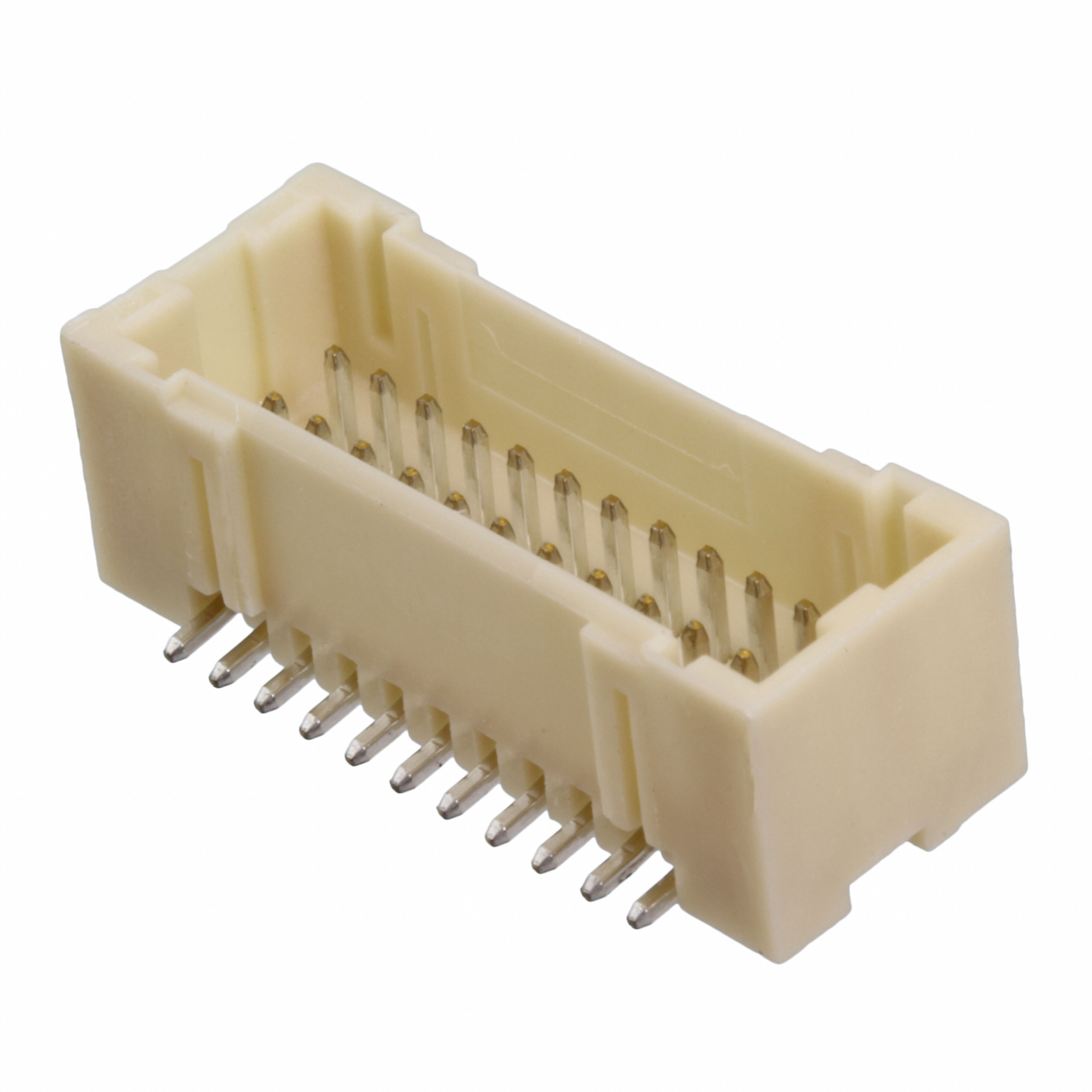

TE Connectivity Raychem Cable Protection 2-292229-2	-30 ░C	105 ░C	Square	Solder	Tin	Header	2	50 VAC	Male Pin	Varies by Wire Gauge	Detent Lock	0.114 in	2.9 mm	22 positions	0.079 in	2 mm	Glass Filled Nylon Polyamide (PA)	Beige	General Purpose	Board to Cable/Wire	All	Board Guide	Surface Mount	UL94 V-0	7.4 mm	0.291 in	Shrouded - 4 Wall	Brass
