79229 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

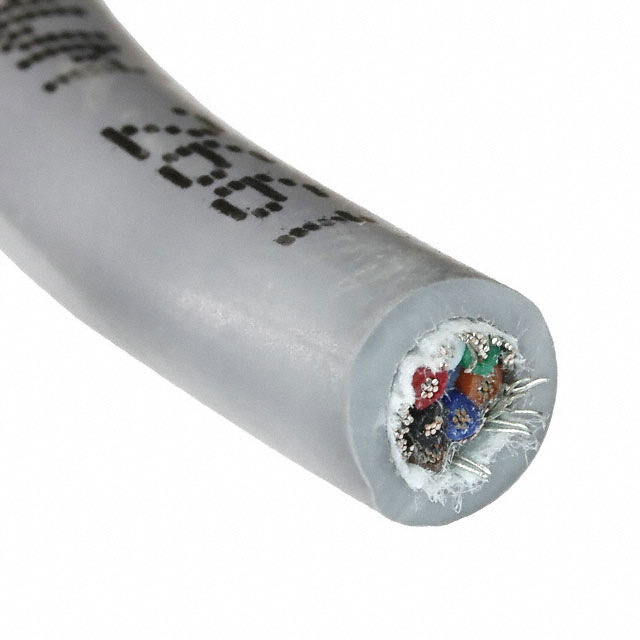

CABLE 7COND 14AWG SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Voltage | Conductor Material | Cable Type | Ratings | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Features | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | 41 | 30 | 7 | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | 600 V | Copper Tinned | Multi-Conductor | ISO 10993 | Braid Foil | -40 C | 105 ░C | 0.398 in | 10.11 mm | Slate | Biological Compatibility | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | 41 | 30 | 7 | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | 600 V | Copper Tinned | Multi-Conductor | ISO 10993 | Braid Foil | -40 C | 105 ░C | 0.398 in | 10.11 mm | Slate | Biological Compatibility | ||||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | 41 | 30 | 7 | 14.5 AWG | Polyphenylene Ether Modified (mPPE) | 600 V | Copper Tinned | Multi-Conductor | ISO 10993 | Braid Foil | -40 C | 105 ░C | 0.398 in | 10.11 mm | Slate | Biological Compatibility | 100 ft | 30.5 m |
