717-022 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 22POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Color	Gender	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Card Type	Number of Positions/Bay/Row	Number of Positions	Termination Rows	Number of Rows

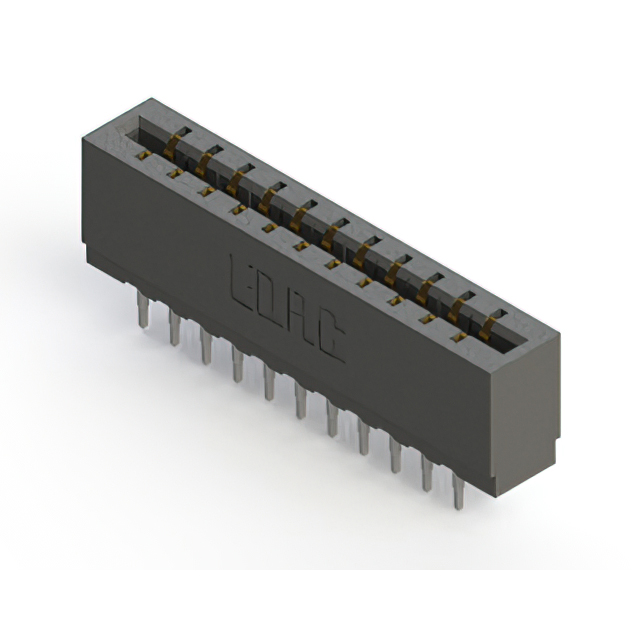

EDAC Inc. 717-022-560-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever Make Before Break	Non Specified - Dual Edge	11	22
EDAC Inc. 717-022-525-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Dual Edge	11	22
EDAC Inc. 717-022-540-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Dual Edge	11	22

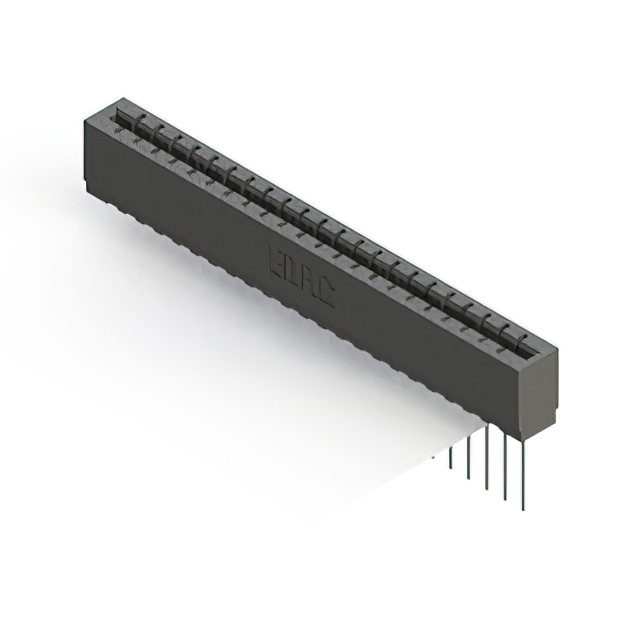

EDAC Inc. 717-022-541-101	Polyester Thermoplastic		Black	Female	Single	-40 C	105 ░C	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Single Edge	22	22	1	1
EDAC Inc. 717-022-522-101	Polyester Thermoplastic		Black	Female	Single	-40 C	105 ░C	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Single Edge	22	22	1	1
EDAC Inc. 717-022-520-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Dual Edge	11	22

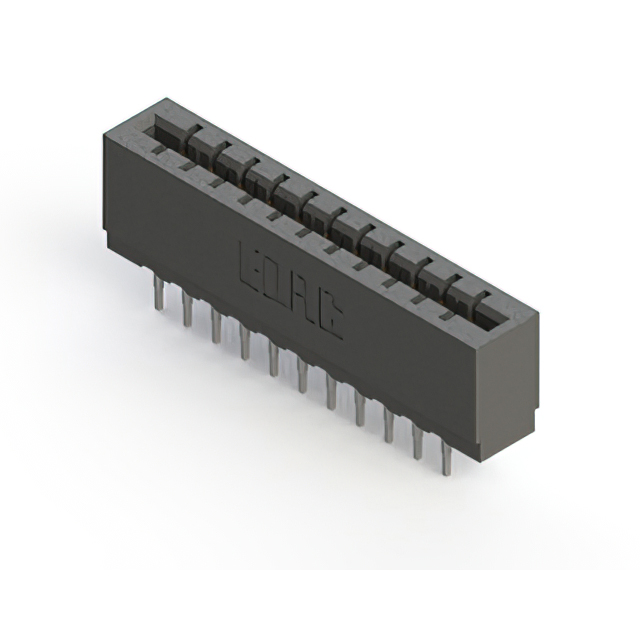

EDAC Inc. 717-022-522-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Dual Edge	11	22
EDAC Inc. 717-022-540-101	Polyester Thermoplastic		Black	Female	Single	-40 C	105 ░C	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Single Edge	22	22	1	1
EDAC Inc. 717-022-525-101	Polyester Thermoplastic		Black	Female	Single	-40 C	105 ░C	3.96 mm	0.156 in		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Single Edge	22	22	1	1

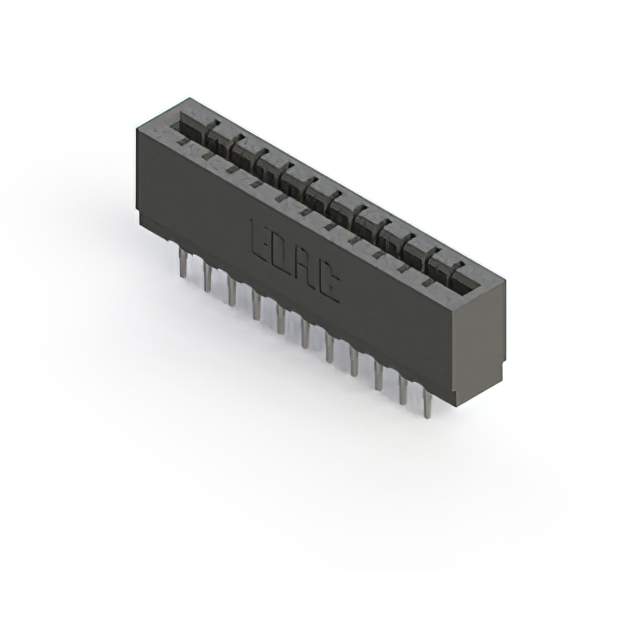

EDAC Inc. 717-022-541-201	Polyester Thermoplastic	2	Black	Female	Dual	-40 C	105 ░C	3.96 mm	0.156 in	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Through Hole	Copper Alloy	30 Áin	0.76 Ám	Gold	Cantilever	Non Specified - Dual Edge	11	22
