AXB050 Series

Catalog

DC DC CONVERTER 5-15V 50W

Part	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Type	Efficiency	Features	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Mounting Type	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]

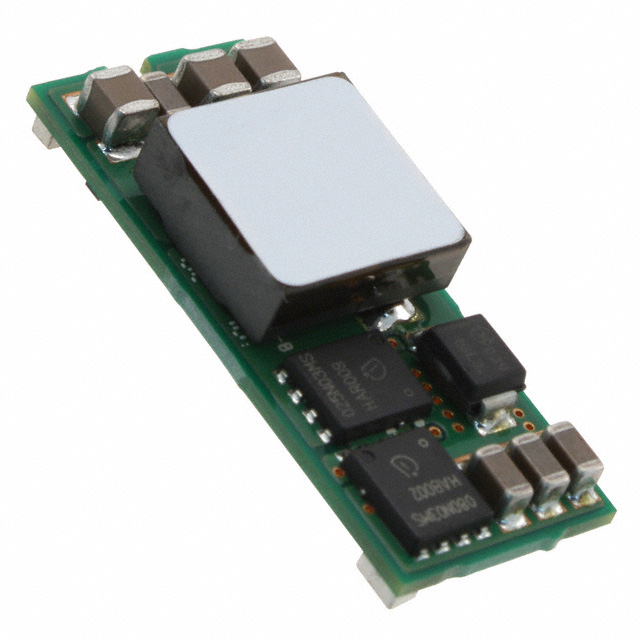

OmniOn Power™ AXB050X43-SRZ	6-SMD Module	15 V	5 V	20 V	Non-Isolated PoL Module	94 %	OCP OTP Remote On/Off UVLO	ITE (Commercial)	30 V	50 W	Surface Mount	Active High Enable	33 mm	13.5 mm	0.53 in	1.3 in	0.33 in	8.3 mm	8 A	1	85 °C	-40 C
OmniOn Power™ AXB050X43-SRZ	6-SMD Module	15 V	5 V	20 V	Non-Isolated PoL Module	94 %	OCP OTP Remote On/Off UVLO	ITE (Commercial)	30 V	50 W	Surface Mount	Active High Enable	33 mm	13.5 mm	0.53 in	1.3 in	0.33 in	8.3 mm	8 A	1	85 °C	-40 C
