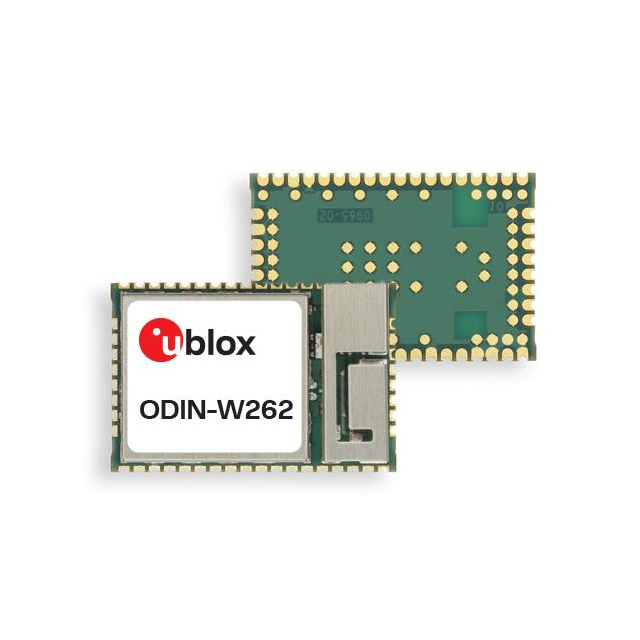

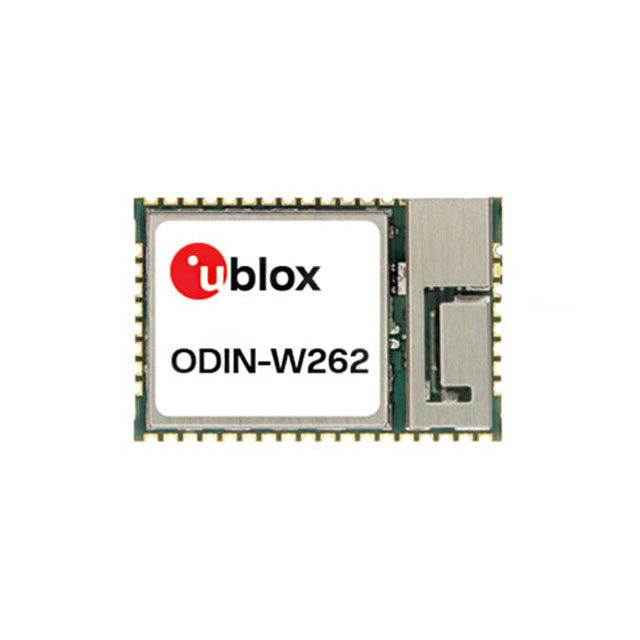

ODIN-W262 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MOD BLUETOOTH WIFISMD
| Part | Power - Output | RF Family/Standard | Current - Receiving | Antenna Type | Package / Case | Frequency Range 1 (Min) | Frequency Range 2 (Min) | Frequency Range 2 (Max) | Frequency Range 1 (Max) | Sensitivity | Data Rate | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Protocol | Mounting Type | Modulation | Current - Transmitting | Serial Interfaces | Memory Type | Memory Size (Flash) | Memory Size (SRAM) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | 18 dBm | Bluetooth WiFi | 140 mA | Antenna Not Included | 52-SMD Module | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | -95 dBm | 130 Mbps | -40 °C | 85 °C | 3.6 V | 3 V | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | Surface Mount | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 250 mA | ADC GPIO I2C SPI UART | ||||
u-blox | 15 dBm | Bluetooth WiFi | 140 mA | Chip Integrated | 52-SMD Module | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | -95 dBm | 130 Mbps | -40 °C | 85 °C | 3.6 V | 3 V | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | Surface Mount | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 250 mA | UART | Flash RAM | 2 MB | 256 kB | STM32 TI WL8 |
u-blox | 15 dBm | Bluetooth WiFi | 140 mA | Chip Integrated | 52-SMD Module | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | -95 dBm | 130 Mbps | -40 °C | 85 °C | 3.6 V | 3 V | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | Surface Mount | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 250 mA | UART | ||||
 u-blox | 18 dBm | Bluetooth WiFi | 140 mA | Chip Integrated | 52-SMD Module | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | -95 dBm | 130 Mbps | -40 °C | 85 °C | 3.6 V | 3 V | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | Surface Mount | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 250 mA | ADC GPIO I2C SPI UART |
