734 Series

Catalog

CONNECTOR ACCESSORY, PUSH BUTTON, MALE & FEMALE CONNECTORS

Part	Color	Type	For Use With/Related Products	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Current - UL	Plug Wire Entry	Current - IEC	Mounting Type	Number of Positions	Pitch	Pitch	Number of Levels	Voltage - UL	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Positions Per Level

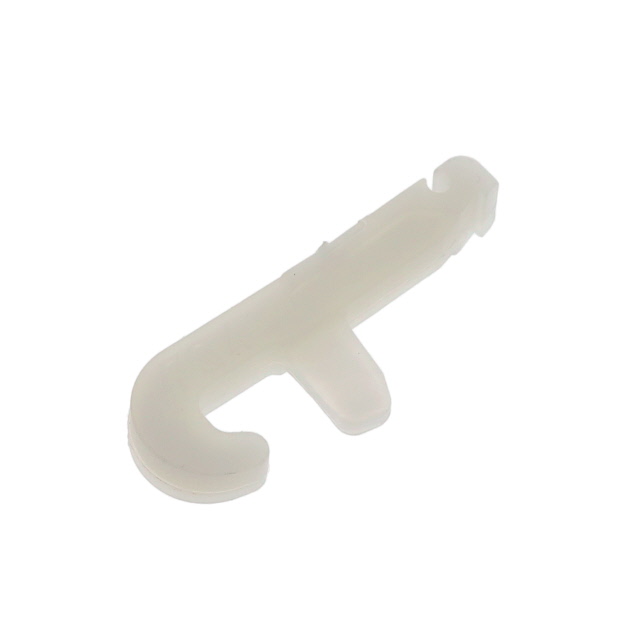

WAGO Corporation 734-230	White	Push-Button	Terminal Blocks
WAGO Corporation 734-104	Gray	Plug Female Sockets		7 mm	6 mm	UL94 V-0	Copper Alloy	0.528 in	13.4 mm	10 A	180 °	10 A	Free Hanging (In-Line)	4	3.5 mm	0.138 "	1	300 V	Tin	14 AWG	28 AWG	320 V	Screwless - Spring Cage Tension Clamp	-60 °C	100 °C	0.08 mm²	1.5 mm²	4

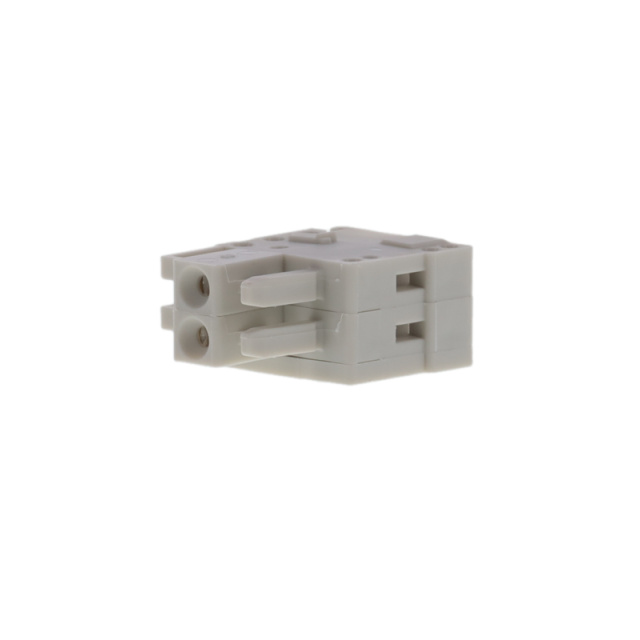

WAGO Corporation 734-102	Gray	Plug Female Sockets		7 mm	6 mm	UL94 V-0	Copper Alloy	0.528 in	13.4 mm	10 A	180 °	10 A	Free Hanging (In-Line)	2	3.5 mm	0.138 "	1	300 V	Tin	14 AWG	28 AWG	320 V	Screwless - Spring Cage Tension Clamp	-60 °C	100 °C	0.08 mm²	1.5 mm²	2

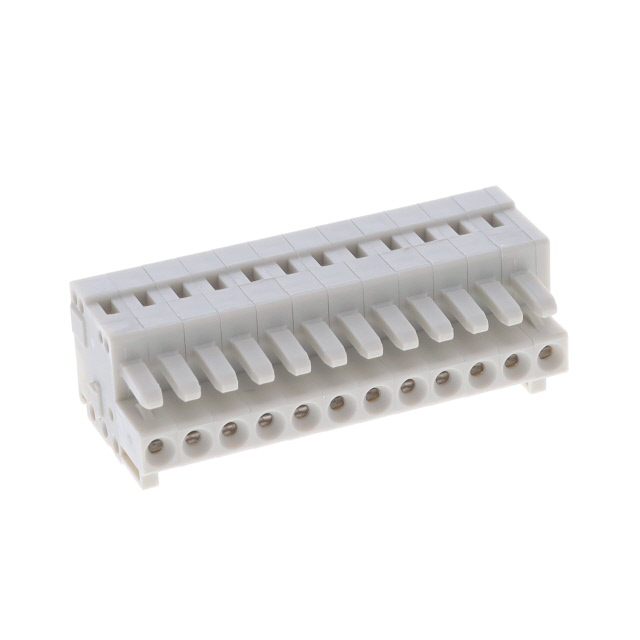

WAGO Corporation 734-112	Gray	Plug Female Sockets		7 mm	6 mm	UL94 V-0	Copper Alloy	0.528 in	13.4 mm	10 A	180 °	10 A	Free Hanging (In-Line)	12	3.5 mm	0.138 "	1	300 V	Tin	14 AWG	28 AWG	320 V	Screwless - Spring Cage Tension Clamp	-60 °C	100 °C	0.08 mm²	1.5 mm²	12

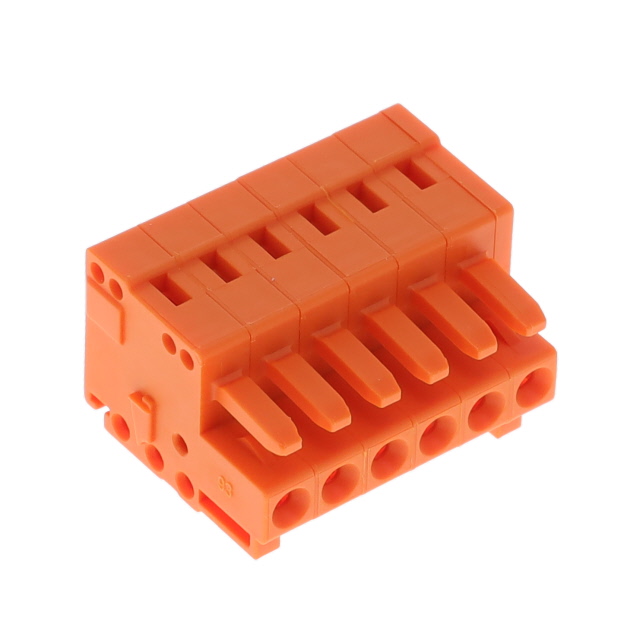

WAGO Corporation 734-206		Plug Female Sockets		7 mm	6 mm	UL94 V-0	Copper Alloy	0.528 in	13.4 mm	10 A	180 °	10 A	Free Hanging (In-Line)	6	3.81 mm	0.15 in	1	300 V	Tin	14 AWG	28 AWG	320 V	Screwless - Spring Cage Tension Clamp	-60 °C	100 °C	0.08 mm²	1.5 mm²	6

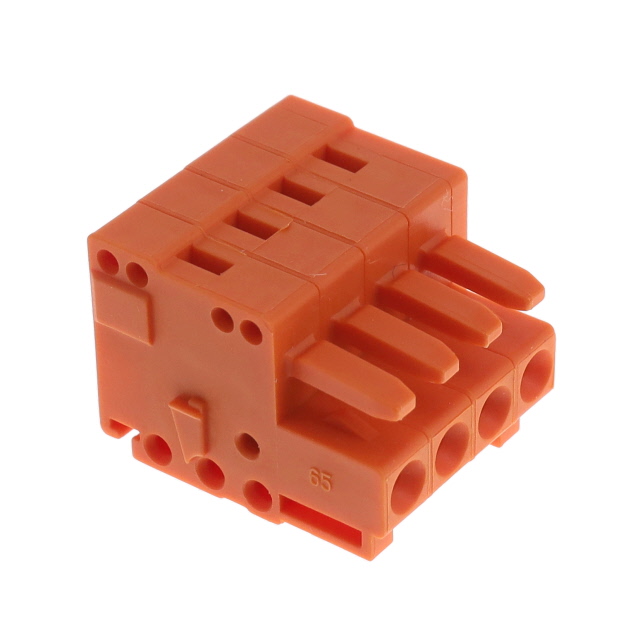

WAGO Corporation 734-204		Plug Female Sockets		7 mm	6 mm	UL94 V-0	Copper Alloy	0.528 in	13.4 mm	10 A	180 °	10 A	Free Hanging (In-Line)	4	3.81 mm	0.15 in	1	300 V	Tin	14 AWG	28 AWG	320 V	Screwless - Spring Cage Tension Clamp	-60 °C	100 °C	0.08 mm²	1.5 mm²	4
