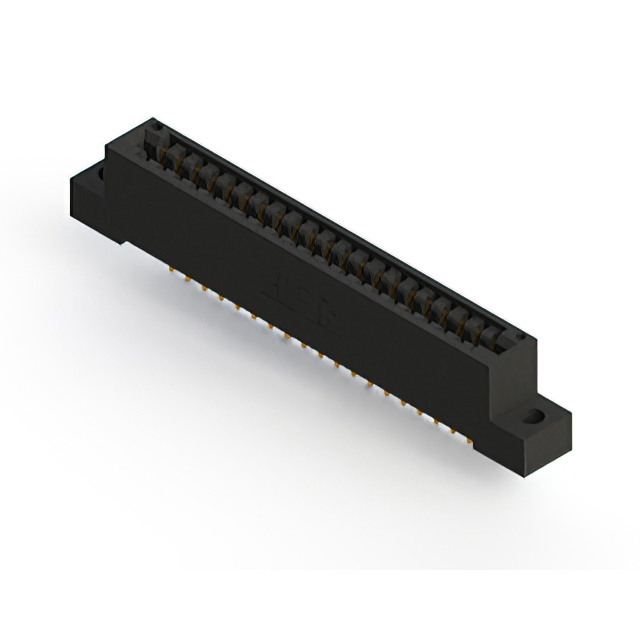

396-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K
396 SERIES (.125" (3.18MM) CONTA
| Part | Termination Rows | Material - Insulation | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Color | Read Out | Contact Material | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Type | Number of Rows | Card Type | Mounting Type | Gender | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Solder | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 2.95 mm | 0.116 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 2.95 mm | 0.116 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Solder | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Side Opening Unthreaded | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 21 | Gold | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Black | Single | Copper Alloy | 21 | -40 C | 105 ░C | Wire Wrap | Cantilever | 1 | Non Specified - Single Edge | Through Hole | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
