GEC04D Series

Catalog

CONN HEADER SMD 8POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Material	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Number of Rows [custom]	Material Flammability Rating	Shrouding	Contact Material	Termination	Insulation Color	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post

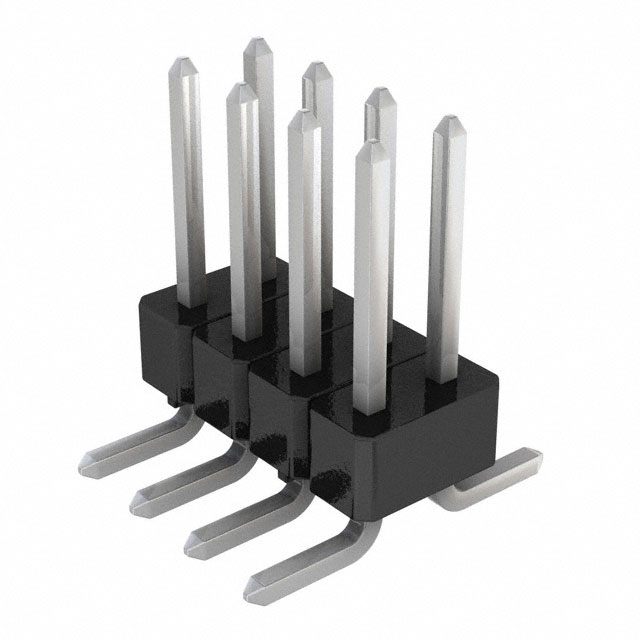

Sullins Connector Solutions GEC04DFBN-M30	2.54 µm	100 µin	150 °C	-65 ░C	Board to Board Cable	Nylon 9T Polyamide (PA9T)	3 A	Square	0.1 in	2.54 mm	Surface Mount	Header Breakaway	0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	8	0.1 in	2.54 mm	All	2	UL94 V-0	Unshrouded	Phosphor Bronze	Solder	Black	Male Pin	8.08 mm	0.318 in	Tin

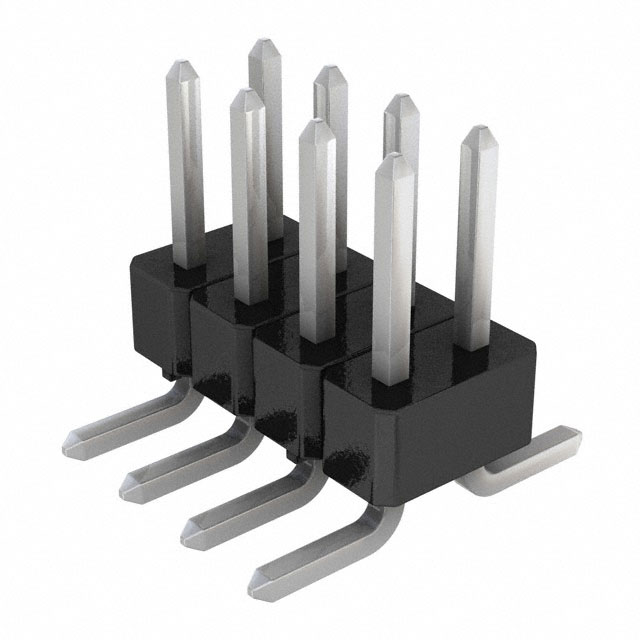

Sullins Connector Solutions GEC04DABN-M30	2.54 µm	100 µin	150 °C	-65 ░C	Board to Board Cable	Nylon 9T Polyamide (PA9T)	3 A	Square	0.1 in	2.54 mm	Surface Mount	Header Breakaway	0.1 "	2.54 mm	100 çin	2.54 çm	Push-Pull	8	0.1 in	2.54 mm	All	2	UL94 V-0	Unshrouded	Phosphor Bronze	Solder	Black	Male Pin	5.84 mm	0.23 in	Tin
