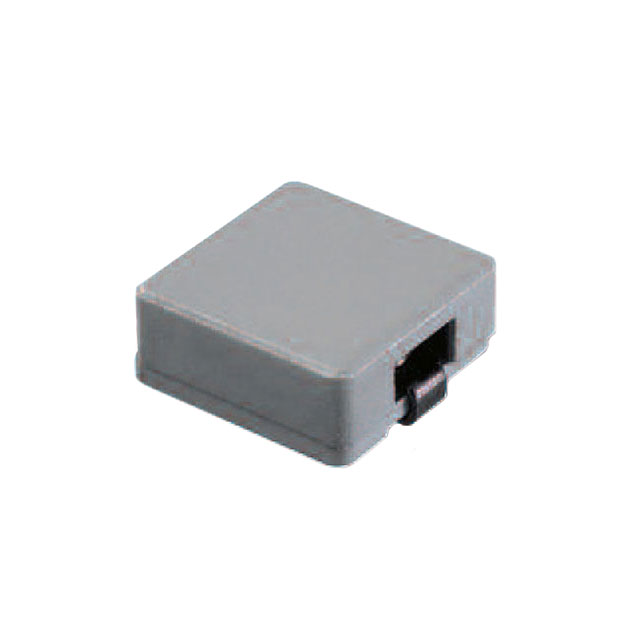

AX02 Series
Manufacturer: Triad Magnetics
Beta
⌘K
POWER INDUCTORS - SMD SMD INDUCTOR 1.5 H@18.0A
| Part | Tolerance | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Shielding | Mounting Type | Current - Saturation (Isat) | Inductance Frequency - Test | DC Resistance (DCR) | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Material - Core | Supplier Device Package | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Triad Magnetics | 20 % | Drum Core Wirewound | 85 °C | -40 C | 2-SMD J-Lead | Shielded | Surface Mount | 30 A | 100 kHz | 2.3 mOhm | 1.5 µH | 6.5 mm | 0.256 in | 0.591 in | 13.3 mm | 15 mm | 0.524 " | Ferrite | SMD | 18 A |
