861400361 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

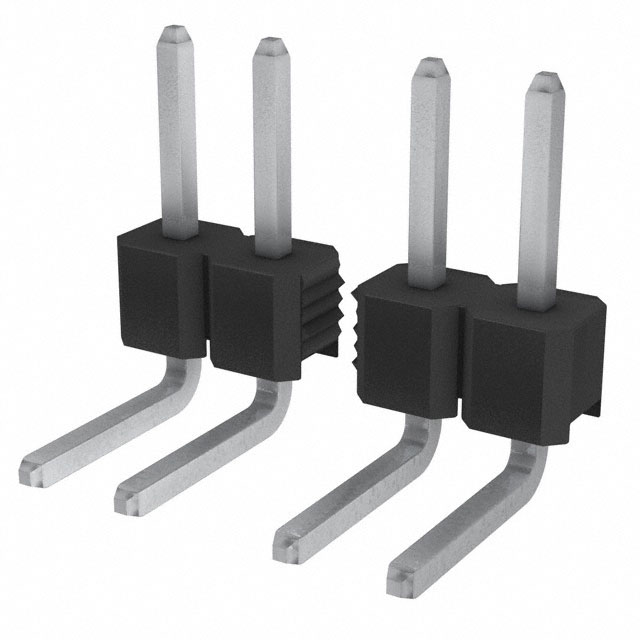

CONN HEADER R/A 36POS 2.54MM
| Part | Contact Material | Contact Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Mounting Type | Connector Type | Number of Rows | Shrouding | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Current Rating (Amps) | Contact Shape | Insulation Height | Insulation Height | Voltage Rating | Pitch - Mating | Pitch - Mating | Insulation Material | Number of Positions | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | Male Pin | Push-Pull | 100 °C | -40 °C | 0.118 in | 3 mm | Through Hole Right Angle | Breakaway Header | 1 | Unshrouded | UL94 V-0 | 7 mm | 0.276 in | All | 3 A | Square | 0.1 in | 2.54 mm | 1000 VDC | 0.1 in | 2.54 mm | Thermoplastic | 36 | Solder | ||||||||||
 Amphenol ICC (FCI) | Copper Alloy | Male Pin | Push-Pull | 125 °C | -55 °C | 0.118 in | 3 mm | Through Hole | Breakaway Header | 1 | Unshrouded | UL94 V-0 | 7 mm | 0.276 in | All | 3 A | Square | 1000 VDC | 0.1 in | 2.54 mm | Thermoplastic | 36 | Solder | 0.203 Ám | 8 Áin | 0.496 in | 12.6 mm | Gold or Gold GXT™ | 0.102 in | 2.6 mm | |||||
 Amphenol ICC (FCI) | Copper Alloy | Male Pin | Push-Pull | 0.118 in | 3 mm | Through Hole Right Angle | Breakaway Header | 1 | Unshrouded | UL94 V-0 | 7 mm | 0.276 in | All | 3 A | Square | 0.1 in | 2.54 mm | 1000 VDC | 0.1 in | 2.54 mm | Thermoplastic | 36 | Solder | 0.203 Ám | 8 Áin | Gold or Gold GXT™ | |||||||||
Amphenol ICC (FCI) | Copper Alloy | Male Pin | Push-Pull | 125 °C | -55 °C | Through Hole | Breakaway Header | 1 | Unshrouded | UL94 V-0 | 7 mm | 0.276 in | All | 3 A | Square | 1000 VDC | 0.1 in | 2.54 mm | Thermoplastic | 36 | Solder | 0.102 in | 2.6 mm | Tin | 0.12 in | 3.05 mm | |||||||||
Amphenol ICC (FCI) | Copper Alloy | Male Pin | Push-Pull | 0.118 in | 3 mm | Through Hole Right Angle | Breakaway Header | 1 | Unshrouded | UL94 V-0 | 7 mm | 0.276 in | All | 3 A | Square | 0.1 in | 2.54 mm | 1000 VDC | 0.1 in | 2.54 mm | Thermoplastic | 36 | Solder | 0.203 Ám | 8 Áin | Gold or Gold GXT™ |
