89907 Series
Manufacturer: Belden Inc.
Beta
⌘K

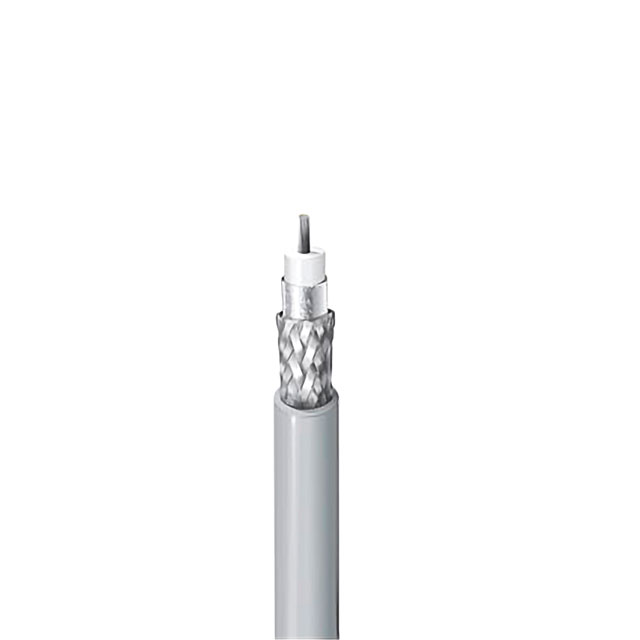

COAX 20AWG 50 OHM
| Part | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Shield Material | Shield Type | Cable Type | Impedance | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 150 °C | -20 ░C | 93 % 100 % | 80 | 0.095 in | 2.41 mm | Foam Fluorinated Ethylene Propylene (FFEP) | Aluminum Copper Tinned | Braid Foil | Thinnet - Plenum | 50 Ohms | 762 m | 2500 ' | 4.06 mm | 0.16 in | RG-58 | 32 AWG | 19 | Polyvinylidene Fluoride (PVDF) | Gray | 20 AWG |
Belden Inc. | Copper Tinned | 150 °C | -20 ░C | 93 % 100 % | 80 | 0.095 in | 2.41 mm | Foam Fluorinated Ethylene Propylene (FFEP) | Aluminum Copper Tinned | Braid Foil | Thinnet - Plenum | 50 Ohms | 152.4 m | 500 ft | 4.06 mm | 0.16 in | RG-58A | 32 AWG | 19 | Polyvinylidene Fluoride (PVDF) | Gray | 20 AWG |
