CT1102V13 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Switch Function	Mounting Type	Actuator Type	Outline [y]	Outline [x]	Actuator Length, Right Angle	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Termination Style	Actuator Orientation	Circuit	Illumination	Contact Rating @ Voltage

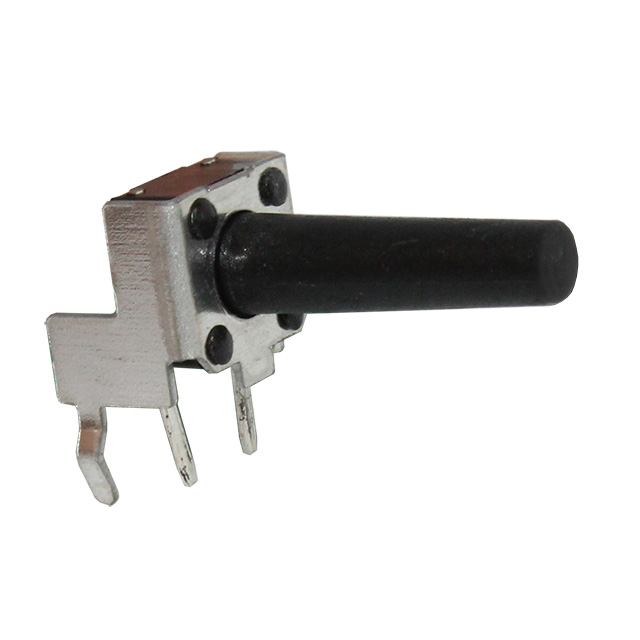

CIT Relay and Switch CT1102V13.35F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Right Angle Through Hole	Plunger for Cap	6.3 mm	7.5 mm	13.35 mm	85 °C	-40 C	160 gf	PC Pin	Side Actuated	SPST-NO	Non-Illuminated	0.05 A 50 VDC
CIT Relay and Switch CT1102V13.35F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Right Angle Through Hole	Plunger for Cap	6.3 mm	7.5 mm	13.35 mm	85 °C	-40 C	100 gf	PC Pin	Side Actuated	SPST-NO	Non-Illuminated	0.05 A 50 VDC

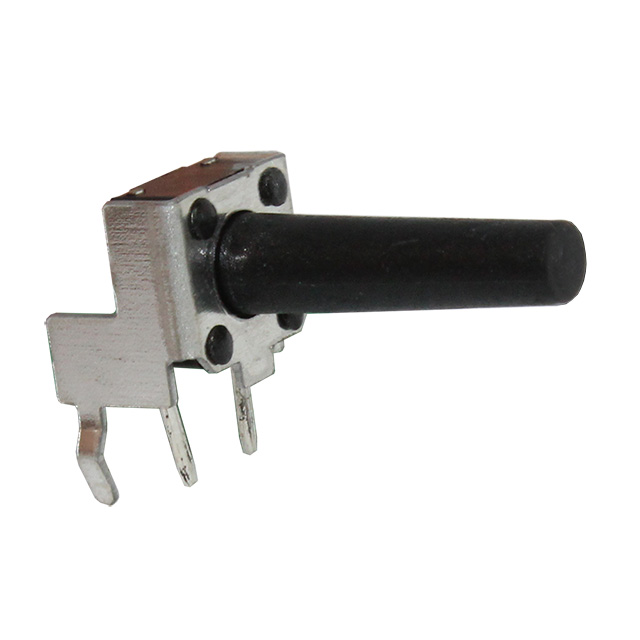

CIT Relay and Switch CT1102V13.85F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Right Angle Through Hole	Plunger for Cap	6.3 mm	7.5 mm	13.85 mm	85 °C	-40 C	160 gf	PC Pin	Side Actuated	SPST-NO	Non-Illuminated	0.05 A 50 VDC
CIT Relay and Switch CT1102V13.85F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Right Angle Through Hole	Plunger for Cap	6.3 mm	7.5 mm	13.85 mm	85 °C	-40 C	100 gf	PC Pin	Side Actuated	SPST-NO	Non-Illuminated	0.05 A 50 VDC
