IL-4P-S3 Series

Catalog

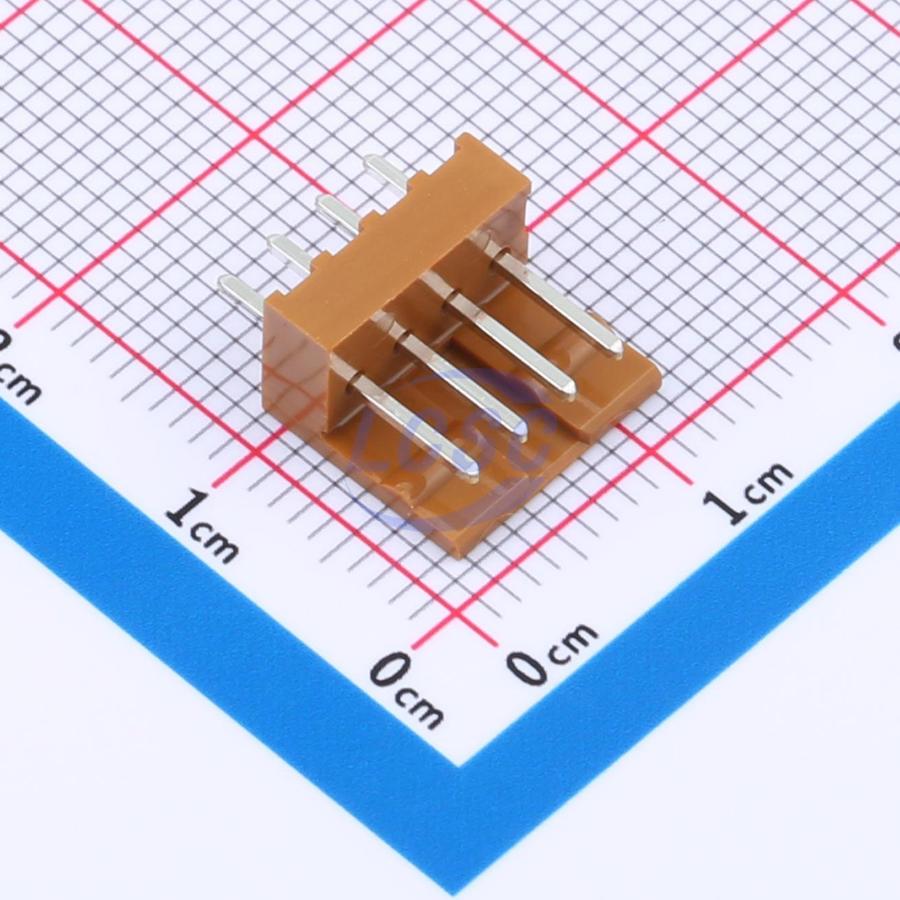

CONN HEADER VERT 4POS 2.5MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Style	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions	Number of Rows	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Shape	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Termination	Insulation Material	Contact Finish - Mating	Connector Type	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Height	Contact Finish - Post

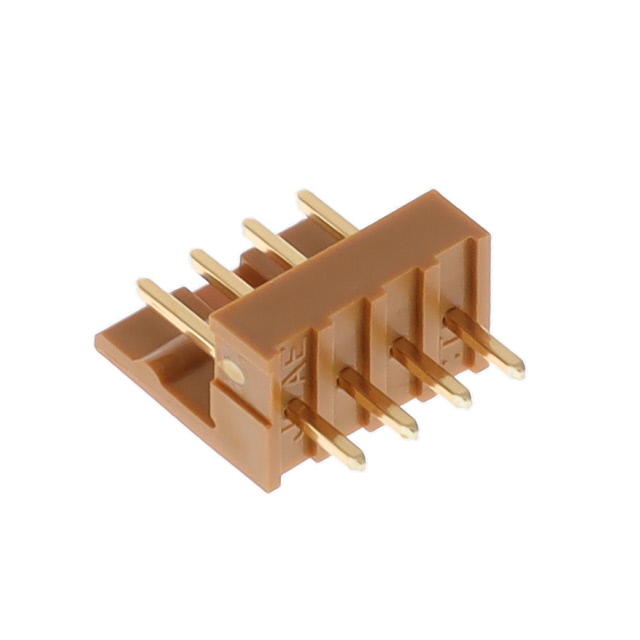

JAE Electronics IL-4P-S3EN2-1	3.9 µin	0.099 µm	Male Pin	Board to Cable/Wire	6 mm	0.236 in	Through Hole	4	1	Shrouded - 1 Wall	Friction Lock	0.138 in	3.5 mm	All	Square	0.5 in	12.7 mm	UL94 V-0	Solder	Nylon 6/6 Polyamide (PA66)	Gold	Header	Brass	9.7 mm	0.382 in	2.5 mm	0.098 in	Brown
JAE Electronics IL-4P-S3FP2-1	3.9 µin	0.099 µm	Male Pin	Board to Cable/Wire	6 mm	0.236 in	Right Angle Through Hole	4	1	Shrouded - 1 Wall	Friction Lock	0.138 in	3.5 mm	All	Square			UL94 V-0	Solder	Nylon 6/6 Polyamide (PA66)	Gold	Header	Brass		6.5 mm	2.5 mm	0.098 in	Brown	0.256 in
JAE Electronics IL-4P-S3EN2			Male Pin	Board to Cable/Wire	6 mm	0.236 in	Through Hole	4	1	Shrouded - 1 Wall	Friction Lock	0.138 in	3.5 mm	All	Square	0.5 in	12.7 mm	UL94 V-0	Solder	Nylon 6/6 Polyamide (PA66)		Header	Brass	9.7 mm	0.382 in	2.5 mm	0.098 in	Brown		Tin
JAE Electronics IL-4P-S3FP2			Male Pin	Board to Cable/Wire	6 mm	0.236 in	Right Angle Through Hole	4	1	Shrouded - 1 Wall	Friction Lock	0.138 in	3.5 mm	All	Square			UL94 V-0	Solder	Nylon 6/6 Polyamide (PA66)		Header	Brass		6.5 mm	2.5 mm	0.098 in	Brown	0.256 in	Tin
