LAKEEV11 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON SPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Color - Actuator/Cap | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Mounting Type | Illumination Type, Color | Circuit | Current Rating (Amps) | Actuator Marking | Actuator Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 50000 Cycles | 22 mm | 12 VDC | Blue | Quick Connect - 0.110" (2.8mm) | 55 °C | -20 ░C | Illuminated Standard | 24 V | 125 V | On-On | Panel Mount Front | LED Red | SPDT | 6 A 8 A | No Marking | Button Flush Round | IP65 - Dust Tight Water Resistant |

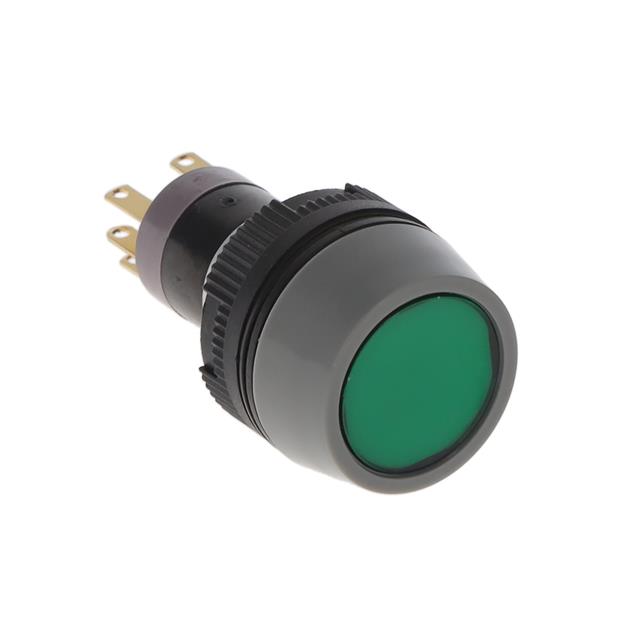

 E-Switch | 100000 Cycles | 50000 Cycles | 22 mm | 12 VDC | Green | Quick Connect - 0.110" (2.8mm) | 55 °C | -20 ░C | Illuminated Standard | 24 V | 125 V | On-On | Panel Mount Front | Green LED | SPDT | 6 A 8 A | No Marking | Button Flush Round | IP65 - Dust Tight Water Resistant |
