M0216SD Series

Catalog

MODULE VF CHAR 2X16 5.34MM

Part	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Character Size [y]	Character Size [z]	Format [y]	Format [x]	Display Type	Display Format [x]	Display Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Viewing Area [x]	Viewing Area [y]	Controller Type	Format	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [x]

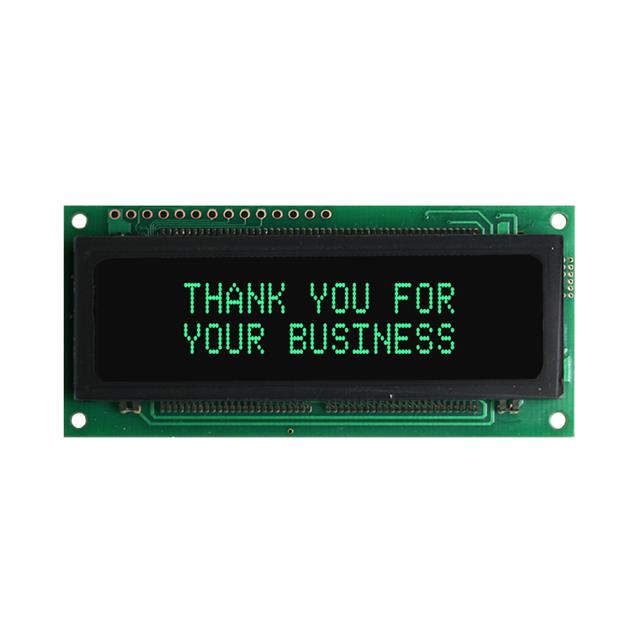

Newhaven Display Intl M0216SD-162SDAR2-1	80 mm	36 mm	18 mm	2.1 mm	5.34 mm	8 Dots	5 Dots	Character	16	2	85 °C	-40 C	Parallel/Serial	51.8 mm	11.5 mm	PT6314

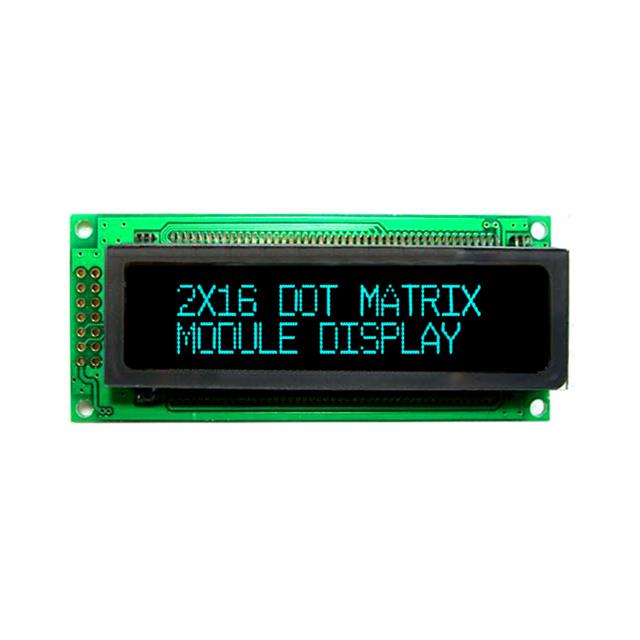

Newhaven Display Intl M0216SD-162SDAR1	85 mm	36 mm	19.5 mm	2.26 mm		7	5 Dots	Character	16	2	85 °C	-40 C	Parallel/Serial	51.8 mm	11.5 mm	PT6314	CURS	5.5 V	4.5 V	4.34 mm

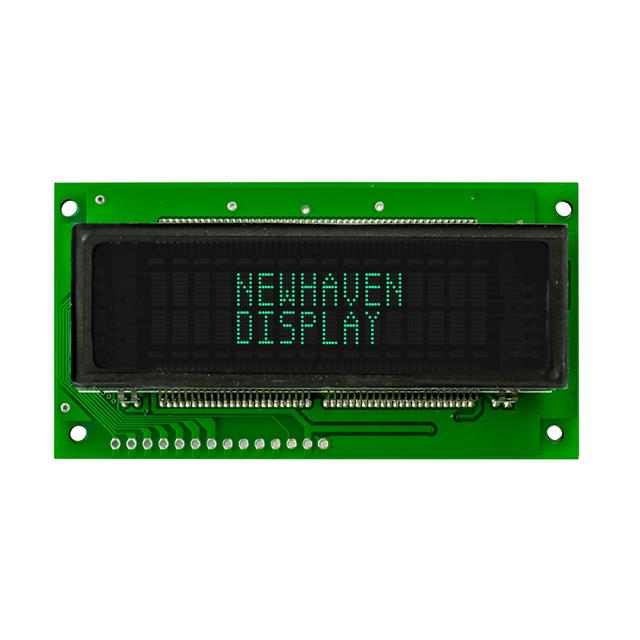

Newhaven Display Intl M0216SD-162SDAR8	84 mm	44 mm	16.6 mm	2.1 mm	5.34 mm	8 Dots	5 Dots	Character	16	2	85 °C	-40 C	Parallel/Serial			PT6314
