LM3697 Series
Manufacturer: Texas Instruments
Beta
⌘K
3 STRING BACKLIGHT DRIVER WITH 11-BITS OF EXPONENTIAL DIMMING
| Part | Applications | Topology | Package / Case | Frequency | Voltage - Supply (Max) | Voltage - Output | Internal Switch(s) | Number of Outputs | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Current - Output / Channel | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Contents | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Backlight | Step-Up (Boost) | 12-WFBGA DSBGA | 1 MHz 500 kHz | 5.5 V | 40 V | 3 | DC DC Regulator | 85 °C | -40 °C | Surface Mount | 12-DSBGA (1.64x1.24) | 30 mA | ||||||

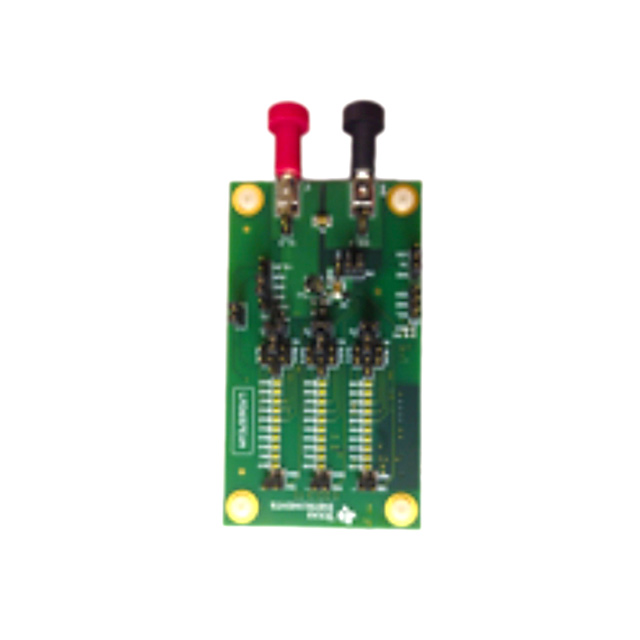

 Texas Instruments | LM3697 | 2.7 V | 5.5 V | Board(s) | 3 Non-Isolated Outputs |
