125SH-B Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 2POS 1.25MM

Part	Contact Length - Post [x]	Contact Length - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Material	Material Flammability Rating	Style	Contact Shape	Termination	Number of Positions Loaded	Voltage Rating	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Contact Finish - Post	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Type	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]	Features

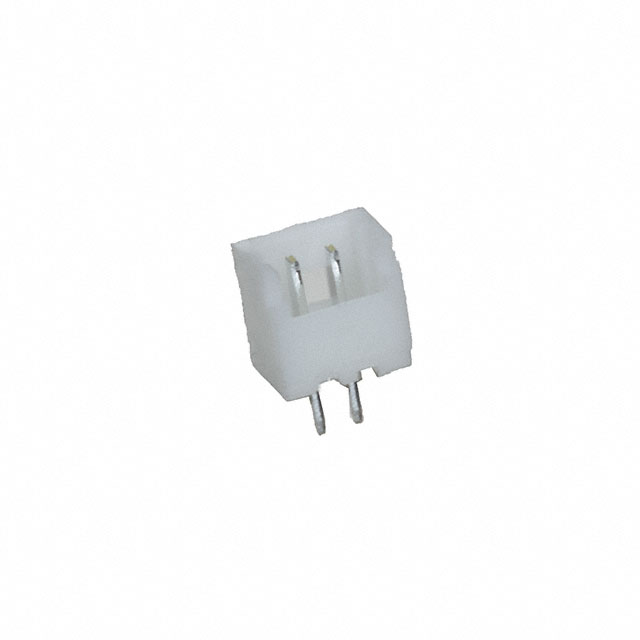

Adam Tech 125SH-B-02-TS	0.091 "	2.3 mm	Shrouded - 4 Wall	2.4 mm	0.094 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	125 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	2	Through Hole	85 °C	-40 C	0.165 in	4.2 mm	Male Blade	Natural	5.9 mm	0.232 in
Adam Tech 125SH-B-06-TS	0.091 "	2.3 mm	Shrouded - 4 Wall	2.4 mm	0.094 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	125 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	6	Through Hole	85 °C	-40 C	0.165 in	4.2 mm	Male Blade	Natural	5.9 mm	0.232 in

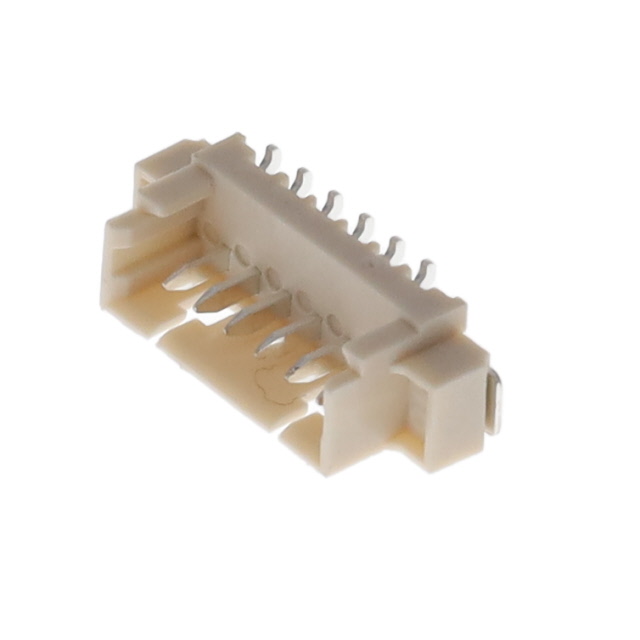

Adam Tech 125SH-B-06-TS-SMT-T/R			Shrouded - 4 Wall	2.1 mm	0.083 in		UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	250 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	6	Surface Mount	85 °C	-40 C	0.183 in	4.65 mm	Male Blade	Ivory			Solder Retention
Adam Tech 125SH-B-03-TS-SMT-T/R			Shrouded - 4 Wall	2.1 mm	0.083 in		UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	250 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin		Surface Mount	85 °C	-40 C	0.183 in	4.65 mm	Male Blade	Ivory			Solder Retention

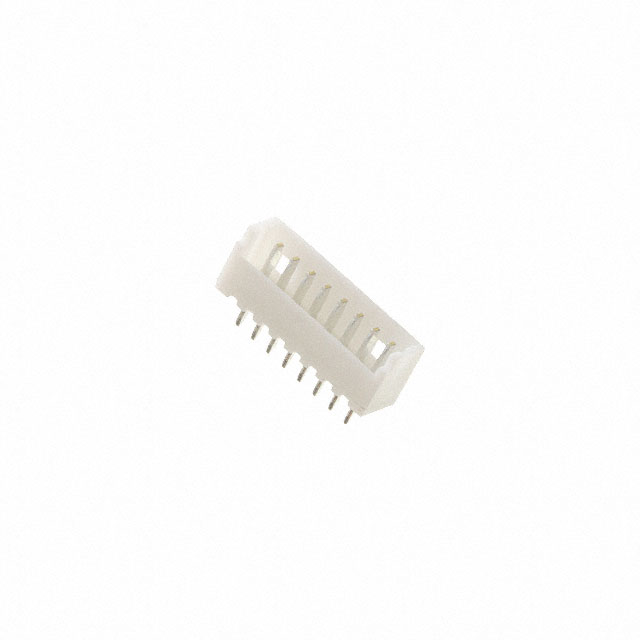

Adam Tech 125SH-B-08-TS	0.091 "	2.3 mm	Shrouded - 4 Wall	2.4 mm	0.094 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	125 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	8	Through Hole	85 °C	-40 C	0.165 in	4.2 mm	Male Blade	Natural	5.9 mm	0.232 in

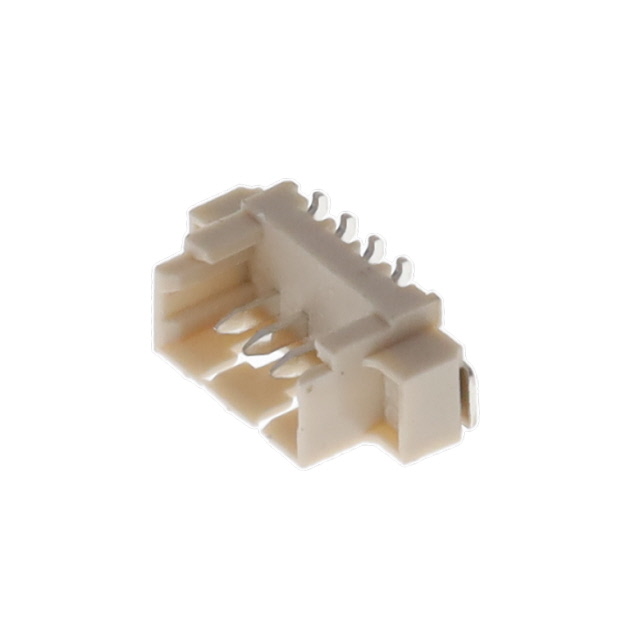

Adam Tech 125SH-B-04-TS-SMT-T/R			Shrouded - 4 Wall	2.1 mm	0.083 in		UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	250 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	4	Surface Mount	85 °C	-40 C	0.183 in	4.65 mm	Male Blade	Ivory			Solder Retention

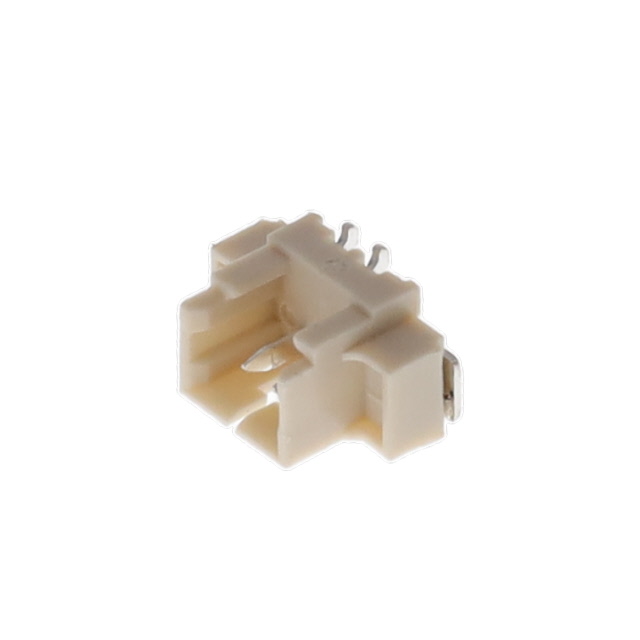

Adam Tech 125SH-B-02-TS-SMT-T/R			Shrouded - 4 Wall	2.1 mm	0.083 in		UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	250 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	2	Surface Mount	85 °C	-40 C	0.183 in	4.65 mm	Male Blade	Ivory			Solder Retention

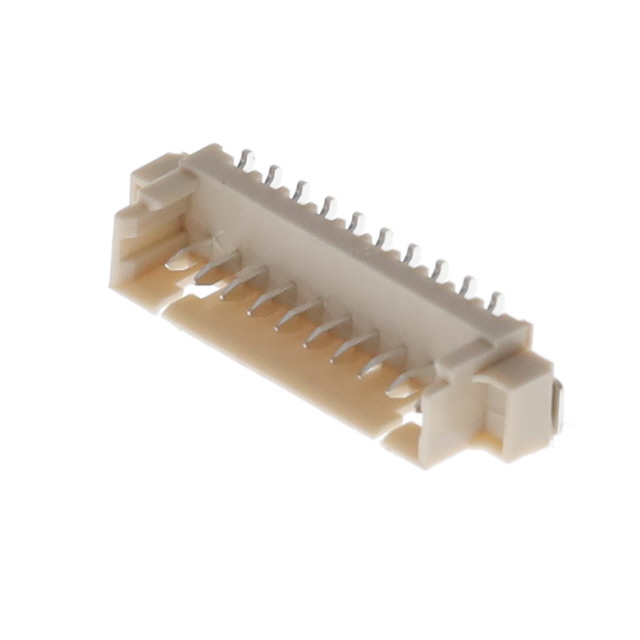

Adam Tech 125SH-B-10-TS-SMT-T/R			Shrouded - 4 Wall	2.1 mm	0.083 in		UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	250 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	10	Surface Mount	85 °C	-40 C	0.183 in	4.65 mm	Male Blade	Ivory			Solder Retention
Adam Tech 125SH-B-07-TR-SMT-T/R			Shrouded - 4 Wall				UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	100 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin	7	Right Angle Surface Mount	85 °C	-40 C	0.134 in	3.4 mm	Male Blade	Natural			Solder Retention

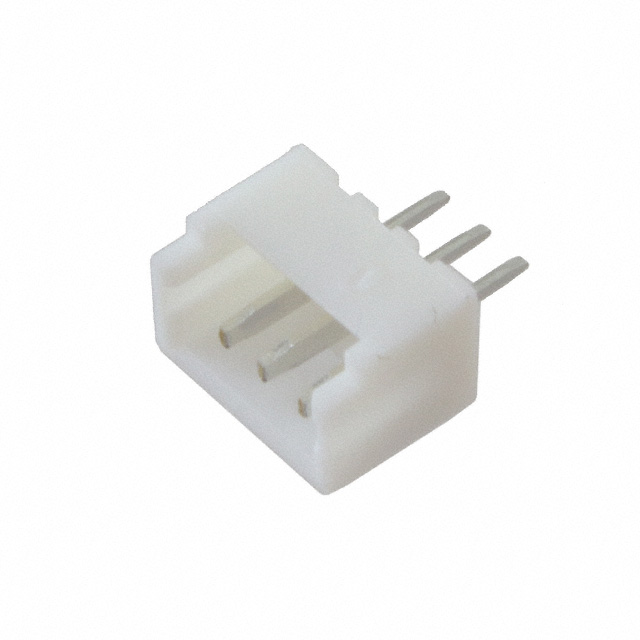

Adam Tech 125SH-B-03-TS	0.091 "	2.3 mm	Shrouded - 4 Wall	2.4 mm	0.094 in	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Board to Cable/Wire	Rectangular	Solder	All	125 VAC	Friction Lock	1	0.049 in	1.25 mm	Header	Brass	Tin		Through Hole	85 °C	-40 C	0.165 in	4.2 mm	Male Blade	Natural	5.9 mm	0.232 in
