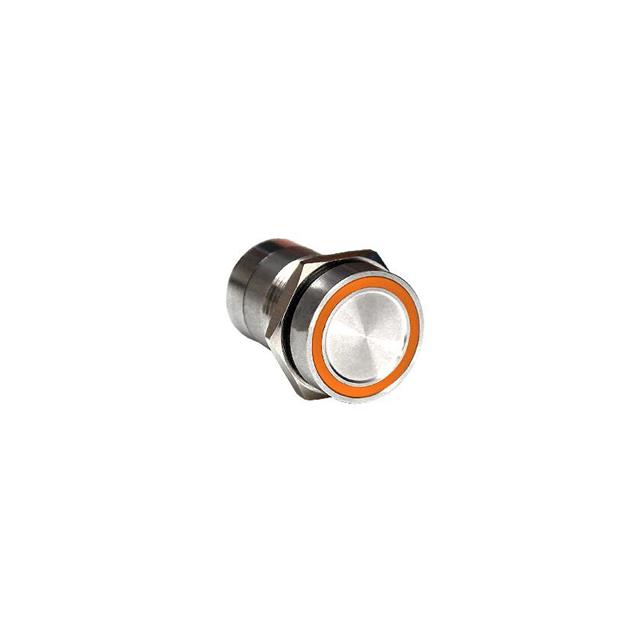

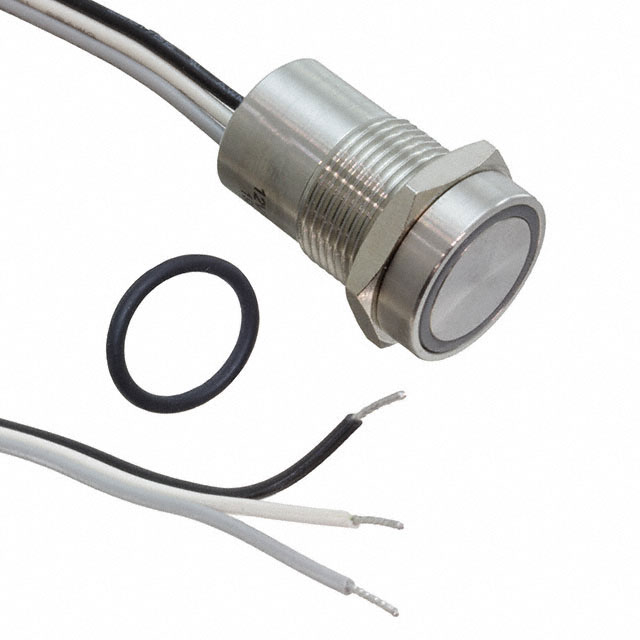

MC16MOS Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
SW CAPACITIVE SPST-NO 10MA 12V
| Part | Electrical Life | Mechanical Life | Type | Switch Function | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Actuator Type | Mounting Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Current Rating (Amps) | Ingress Protection | Termination Style | Circuit | Actuator Marking | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | Capacitive Illuminated | Off-Mom | 16.2 mm | Silver | Button Flush Round | Panel Mount Front | 12 V | 55 °C | -25 °C | Green/Red LED | 500 mA | IP68 IP69K | Wire Leads | SPST-NO | No Marking | |
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | Capacitive Illuminated | Off-Mom | 16.2 mm | Silver | Button Flush Round | Panel Mount Front | 24 V | 55 °C | -25 °C | Amber LED | 500 mA | IP68 IP69K | Wire Leads | SPST-NO | 12 VDC | |
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | Capacitive Illuminated | Off-Mom | 16.2 mm | Silver | Button Flush Round | Panel Mount Front | 24 V | 55 °C | -25 °C | Green LED | 500 mA | IP68 IP69K | Wire Leads | SPST-NO | 12 VDC |
