767042 Series

Catalog

MICT,738PLUG,152,ASSY,.025,EXT ROHS COMPLIANT: NO

Part	Connector Type	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Features
TE Connectivity AMP Connectors 767042-4	Plug Outer Shroud Contacts	18.75 mm 27.8 mm	Gold	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in	30 Áin	0.76 Ám	152	2	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 767042-6	Plug Outer Shroud Contacts	18.75 mm 27.8 mm	Gold	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in	30 Áin	0.76 Ám	228	2	Board Guide Ground Bus (Plane)

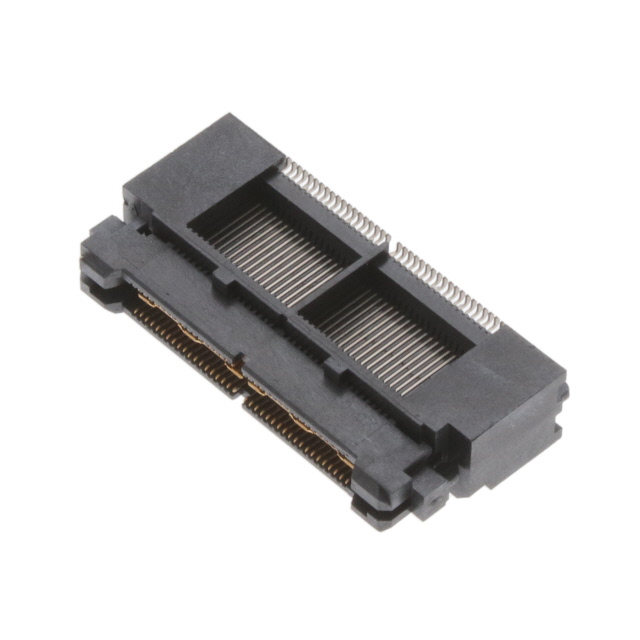

TE Connectivity AMP Connectors 767042-2	Plug Outer Shroud Contacts	18.75 mm 27.8 mm	Gold	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in	30 Áin	0.76 Ám	76	2	Board Guide Ground Bus (Plane)

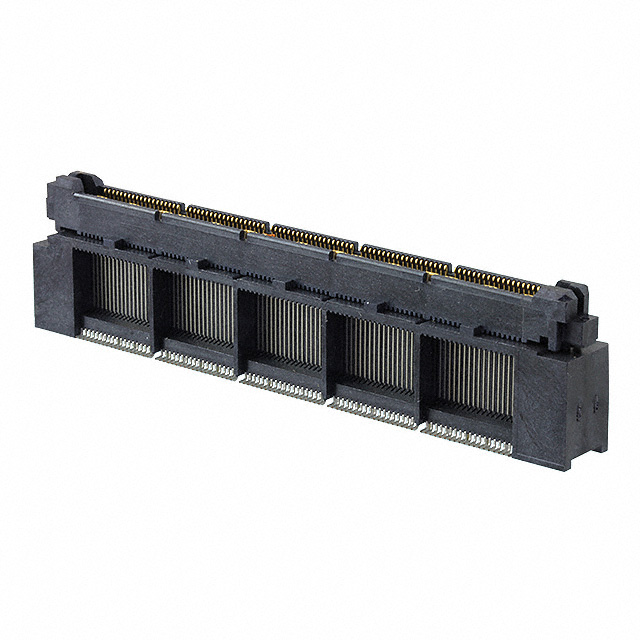

TE Connectivity AMP Connectors 767042-5	Plug Outer Shroud Contacts	18.75 mm 27.8 mm	Gold	0.727 in	18.47 mm	Surface Mount	0.64 mm	0.025 in	30 Áin	0.76 Ám	190	2	Board Guide Ground Bus (Plane)
