1825266 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

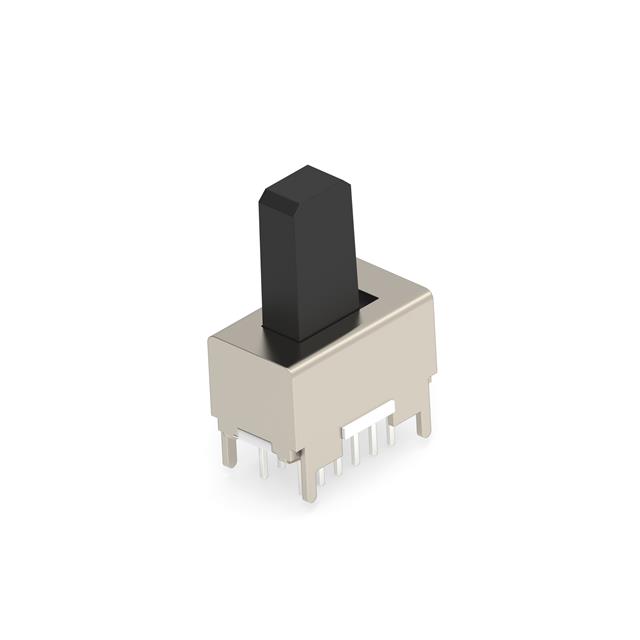

SWITCH SLIDE 4PDT EXTENDED TOP SLIDE 0.3A 125VAC PC PINS BRACKET MOUNT/THROUGH HOLE TRAY
| Part | Contact Material | Contact Finish | Actuator Material | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Contact Timing | Features | Termination Style | Switch Travel | Switch Function | Mounting Type | Current Rating (Amps) | Circuit | Electrical Life | Voltage Rating - AC | Mechanical Life | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper Alloy | Silver | Polyoxymethylene (Acetal) (POM) | 12 mm | 85 °C | -20 C | Standard | Shorting | Epoxy Sealed Terminals | PC Pin | 2 mm | On-On | Through Hole | 300 mA | 4PDT | 15000 Cycles | 125 V | 15000 Cycles | 600 gf |
