045558 Series
Manufacturer: Molex
Beta
⌘K

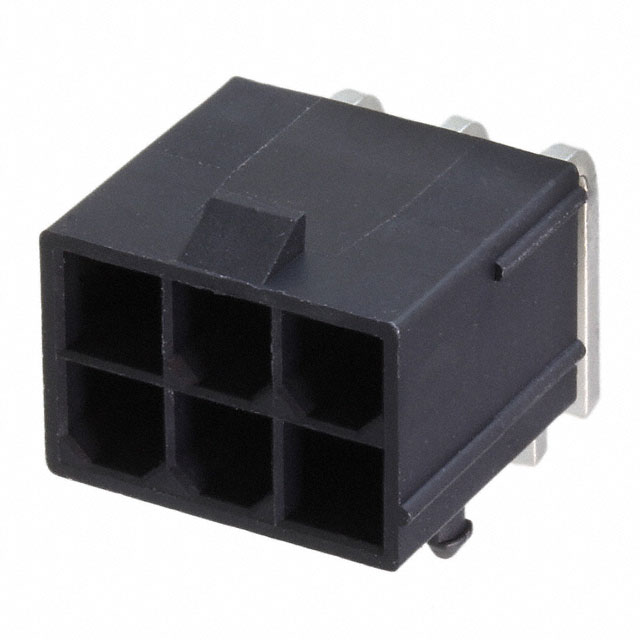

CONN HEADER R/A 6POS 4.2MM
| Part | Shrouding | Contact Finish - Post | Insulation Color | Number of Positions | Style | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Insulation Material | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Material | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Number of Rows | Fastening Type | Contact Shape | Termination | Mounting Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Shrouded - 4 Wall | Tin | Black | 6 | Board to Cable/Wire | Male Pin | 4.2 mm | 0.165 in | 4.2 mm | 0.165 in | Nylon Polyamide (PA) | UL94 V-0 | 2.54 çm | 100 çin | Header | Brass | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | 600 V | 3.6 mm | 0.142 in | 2.54 µm | 100 µin | 8 A | 2 | Locking Ramp | Square | Solder | Through Hole Right Angle | All |
