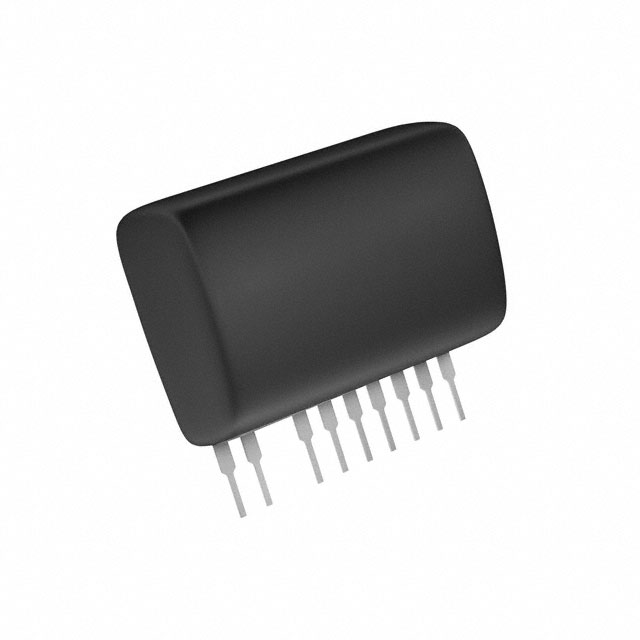

BP5232 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
DC DC CONVERTER 2.5V 2A
| Part | Current - Output (Max) [Max] | Mounting Type | Number of Outputs | Voltage - Output 1 | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Efficiency | Applications | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 2 A | Through Hole | 1 | 2.5 V | Non-Isolated PoL Module | 55 °C | -20 C | 9 PC Pad | 10-SIP Module | 4.5 V | 12 mm | 1.1 " | 0.77 " | 19.5 mm | 28 mm | 0.47 " | Remote On/Off SCP | 93 % | ITE (Commercial) | 5.5 V |
Rohm Semiconductor | 2 A | Through Hole | 1 | 2.5 V | Non-Isolated PoL Module | 55 °C | -20 C | 9 PC Pad | 10-SIP Module | 4.5 V | 12 mm | 1.1 " | 0.77 " | 19.5 mm | 28 mm | 0.47 " | Remote On/Off | 93 % | ITE (Commercial) | 5.5 V |
Rohm Semiconductor | 2 A | Through Hole | 1 | 3.3 V | Non-Isolated PoL Module | 55 °C | -20 C | 9 PC Pad | 10-SIP Module | 4.5 V | 12 mm | 1.1 " | 0.77 " | 19.5 mm | 28 mm | 0.47 " | Remote On/Off SCP | 93 % | ITE (Commercial) | 5.5 V |
