S10B-XH Series

Catalog

CONN HEADER R/A 10POS 2.5MM

Part	Contact Shape	Material Flammability Rating	Number of Positions	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Insulation Material	Current Rating (Amps)	Connector Type	Voltage Rating	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Termination	Contact Type	Insulation Color	Contact Finish - Post	Shrouding

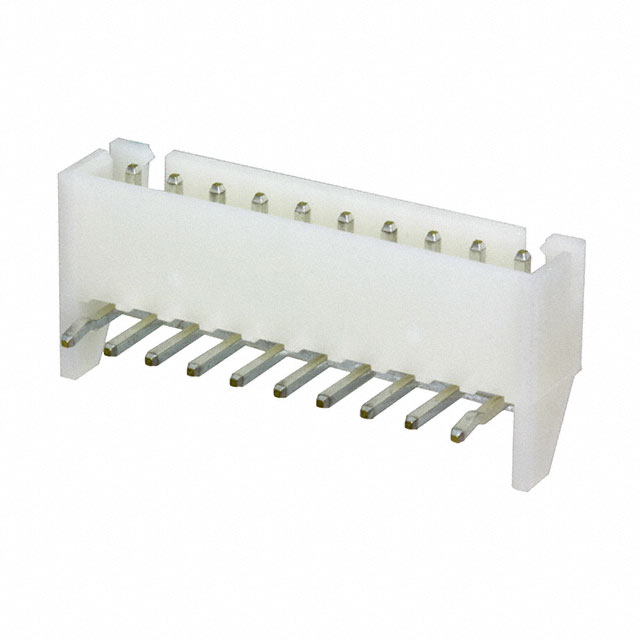

JST Sales America Inc. S10B-XH-A-1	Square	UL94 V-0	10	Brass	6.1 mm	0.24 in	All	Board to Cable/Wire	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)	3 A	Header	250 V	Right Angle Through Hole	0.134 "	3.4 mm	Detent Lock	85 °C	-25 °C	1	Press-Fit Solder	Male Pin	Natural	Tin	Shrouded - 4 Wall

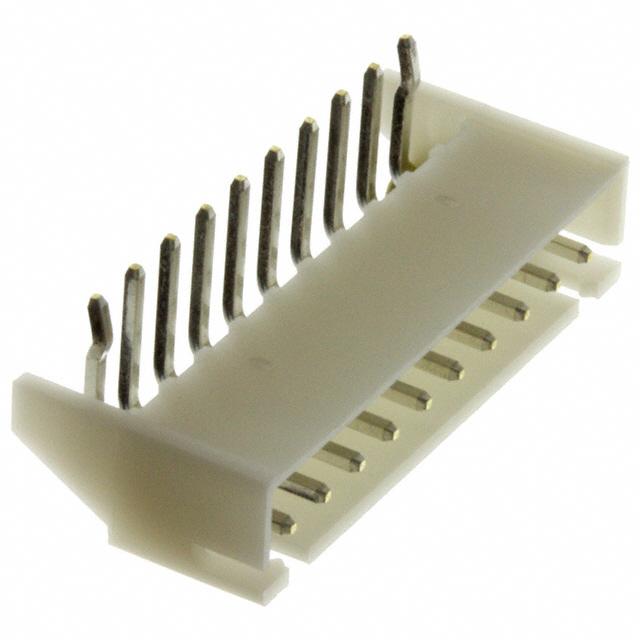

JST Sales America Inc. S10B-XH-A	Square	UL94 V-0	10	Brass	6.1 mm	0.24 in	All	Board to Cable/Wire	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)	3 A	Header	250 V	Right Angle Through Hole	0.134 "	3.4 mm	Detent Lock	85 °C	-25 °C	1	Press-Fit Solder	Male Pin	Natural	Tin	Shrouded - 4 Wall
