JWMW22 Series
Manufacturer: NKK Switches
Beta
⌘K

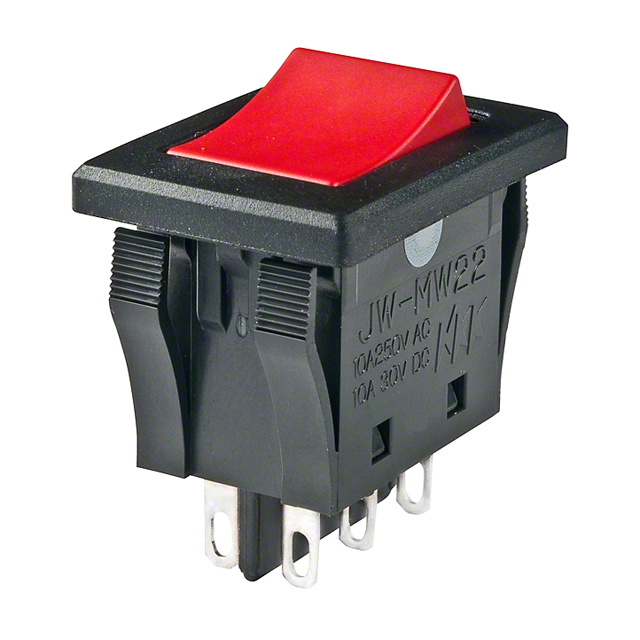

ROCKER SWITCH, HIGH INRUSH, IP67, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, RED, JW SERIES
| Part | Electrical Life | Mechanical Life | Switch Function | Mounting Type | Approval Agency | Current Rating (Amps) | Ingress Protection | Color - Actuator/Cap | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Features | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Voltage Rating - AC | Actuator Type | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | On-On | Panel Mount Snap-In | CSA UL VDE | 10 A | IP67 - Dust Tight Waterproof | Red | 15.4 mm | 25 mm | 30 V | Epoxy Sealed Terminals | 85 °C | -25 °C | No Marking | 125 V | Concave (Curved) | DPDT | Solder Quick Connect - 0.110" (2.8mm) |
 NKK Switches | 25000 Steps | 25000 Steps | On-On | Panel Mount Snap-In | CSA UL VDE | 10 A | IP67 - Dust Tight Waterproof | Black | 15.4 mm | 25 mm | 30 V | Epoxy Sealed Terminals | 85 °C | -25 °C | No Marking | 125 V | Concave (Curved) | DPDT | Solder Quick Connect - 0.110" (2.8mm) |
