Ksc0V20 Series Series

Side Actuated Sealed Tact Switch Tactile Switches Side Actuated Sealed Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Side Actuated Sealed Tact Switch Tactile Switches Side Actuated Sealed Tact Switch

Part	Switch Function	Operating Force	Circuit	Ingress Protection	Actuator Height off PCB, Vertical	Switch Travel	Termination Style	Outline [y]	Outline [x]	Actuator Orientation	Contact Rating @ Voltage	Actuator Type	Mounting Type	Illumination	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length, Right Angle [x]	Actuator Length, Right Angle
Littelfuse/Commercial Vehicle Products KSC421G 70SH LFS	Off-Mom	170 gf	SPST-NO	IP67 - Dust Tight Waterproof	5.2 mm	0.5 mm	Gull Wing	6.2 mm	6.2 mm	Top Actuated	0.05 A	Standard	Surface Mount	Non-Illuminated	300000 Cycles	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSC421G70SHLFSPF

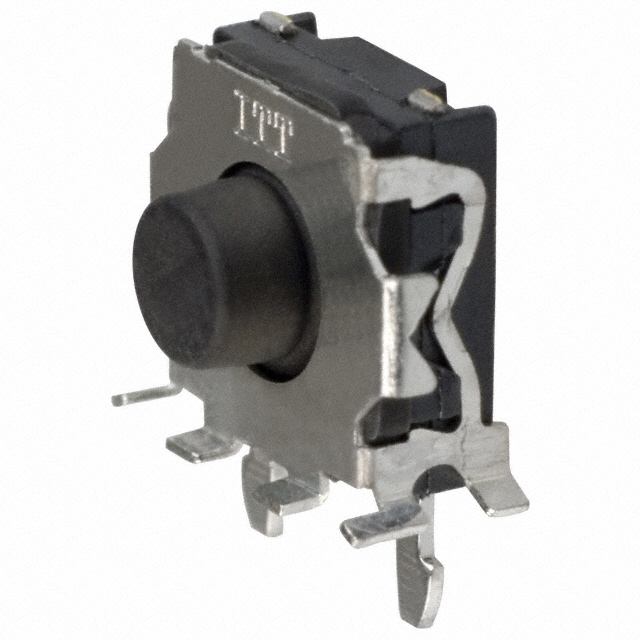

Littelfuse/Commercial Vehicle Products KSC421V30ACT3.17	Off-Mom	170 gf	SPST-NO	IP67 - Dust Tight Waterproof		0.375 mm	SMD (SMT) Tab	3.8 mm	7.4 mm	Side Actuated	0.05 A	Standard	Surface Mount Right Angle	Non-Illuminated	300000 Cycles	85 °C	-40 °C	3.17 mm
Littelfuse/Commercial Vehicle Products KSC421G70SH	Off-Mom	170 gf	SPST-NO	IP67 - Dust Tight Waterproof	5.2 mm	0.5 mm	Gull Wing	6.2 mm	6.2 mm	Top Actuated	0.05 A	Standard	Surface Mount	Non-Illuminated	300000 Cycles	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products KSC421V270SHLFS	Off-Mom	200 gf	SPST-NO	IP67 - Dust Tight Waterproof		0.5 mm	SMD (SMT) Tab	3.43 mm	7.25 mm	Side Actuated	0.05 A	Standard	Through Hole Right Angle	Non-Illuminated	300000 Cycles	85 °C	-40 °C		3.9 mm
Littelfuse/Commercial Vehicle Products KSC421 V30 ACT3.17 LFS	Off-Mom	170 gf	SPST-NO	IP67 - Dust Tight Waterproof		0.375 mm	SMD (SMT) Tab	3.8 mm	7.4 mm	Side Actuated	0.05 A	Standard	Surface Mount Right Angle	Non-Illuminated	300000 Cycles	85 °C	-40 °C	3.17 mm

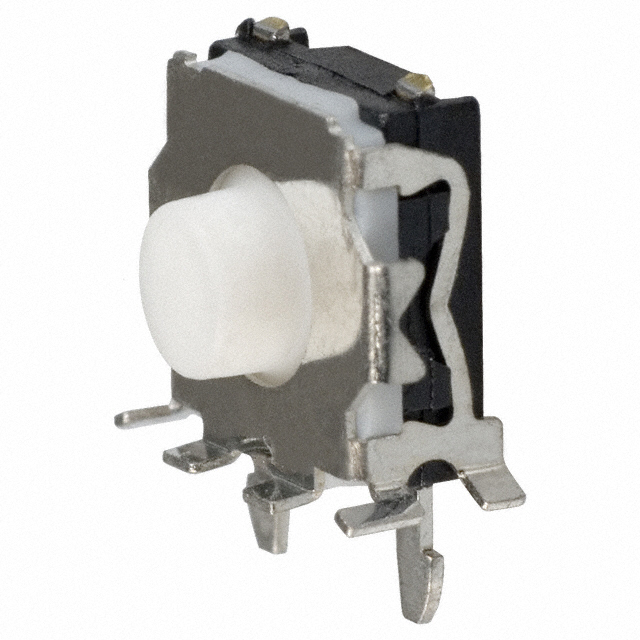

Littelfuse/Commercial Vehicle Products KSC421 V30 ACT2.95 LFS	Off-Mom	170 gf	SPST-NO	IP67 - Dust Tight Waterproof		0.375 mm	SMD (SMT) Tab	3.8 mm	7.4 mm	Side Actuated	0.05 A	Standard	Surface Mount Right Angle	Non-Illuminated	300000 Cycles	85 °C	-40 °C		2.95 mm

Catalog

Side Actuated Sealed Tact Switch Tactile Switches Side Actuated Sealed Tact Switch

Key Features

• Pin in paste terminations

• Full SMD side actuated

• Haptic adaptability

Description

Designed for Industrial electronics, network equipment and automotive applications, C&K’s KSCV2 series side actuated sealed tact switch features a unique design that allows for easy side or rocker key integration, permits haptic adaptability – and ensures the switch meets specific tactile feedback and sound (click) requirements.
