S8B-PHDS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

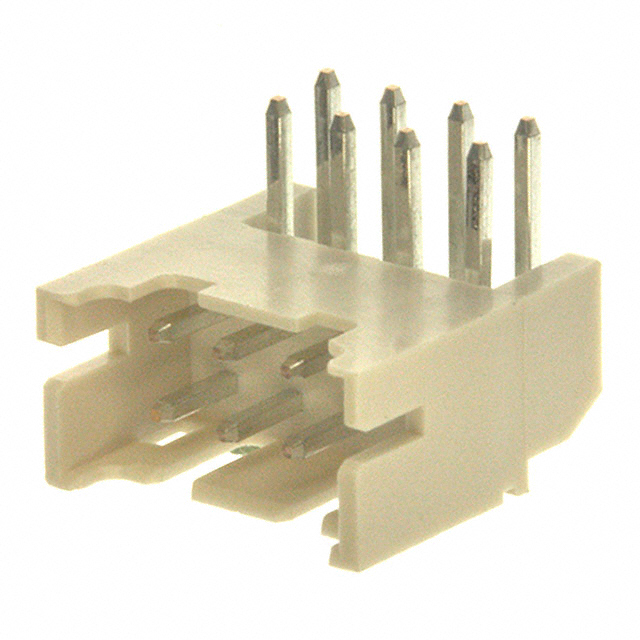

CONN HEADER R/A 8POS 2MM
| Part | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Material | Current Rating (Amps) | Insulation Material | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Length - Post | Contact Length - Post | Style | Number of Rows [custom] | Contact Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Contact Shape | Number of Positions | Voltage Rating | Termination | Fastening Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2.9 mm | 0.114 in | Shrouded - 4 Wall | Copper Alloy | 3 A | Glass Filled Nylon Polyamide (PA) | 0.197 " | 5 mm | 85 °C | -25 °C | Natural | 0.118 in | 3 mm | Board to Cable/Wire | 2 | Male Pin | All | 2 mm | 0.079 in | Tin | Square | 8 | 250 V | Solder | Detent Lock | 0.079 " | 2 mm | UL94 V-0 | Right Angle Through Hole | Header |
