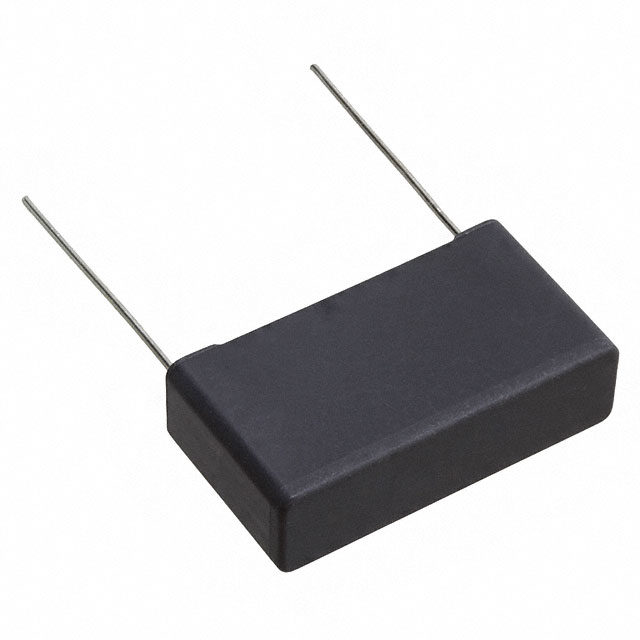

R60IR Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 4.7UF 10% 250VDC RADIAL
| Part | Voltage Rating - AC | Mounting Type | Package / Case | Capacitance | Tolerance | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Dielectric Material | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 160 V | Through Hole | Radial | 4.7 µF | 10 % | General Purpose | 0.354 in | 32 mm | 1.26 in | 9 mm | 250 V | -55 C | 105 ░C | PC Pins | Metallized Polyester Polyethylene Terephthalate (PET) | 0.673 in | 17.1 mm | 27.5 mm | 1.083 in | |
 KEMET | 160 V | Through Hole | Radial | 2.2 µF | 10 % | Automotive | 0.354 in | 32 mm | 1.26 in | 9 mm | 250 V | -55 C | 105 ░C | PC Pins | Polyester Metallized | 0.673 in | 17.1 mm | 27.5 mm | 1.083 in | AEC-Q200 |
