78428 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

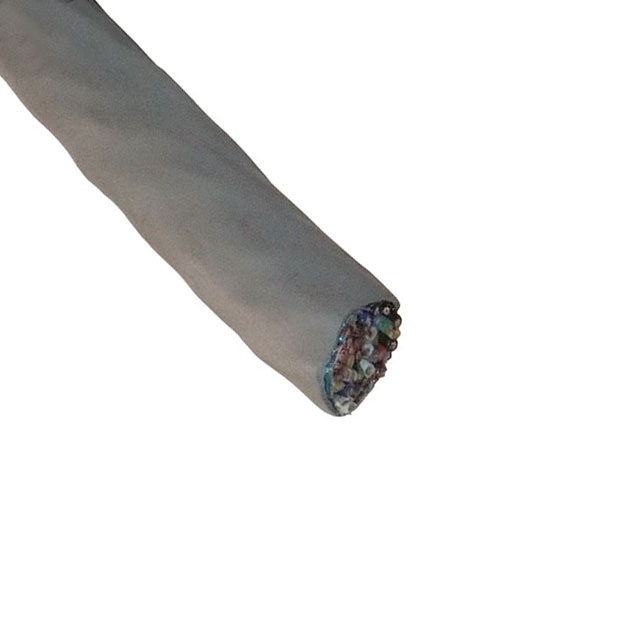

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 20 PAIR, 24 AWG, 0.241 MM², 1000 FT, 305 M
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Wire Gauge | Voltage | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Features | Length | Length | Jacket (Insulation) Material | Jacket Color | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Copper Tinned | 0.381 mm | 0.015 in | 24 AWG | 300 VDC | ISO 10993 UL Style 21460 | 10.16 mm | 0.4 in | Polyphenylene Ether Modified (mPPE) | 80 °C | -40 C | 40 | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Polyphenylene Ether Modified (mPPE) | Slate | Multi-Pair | Braid Foil |
