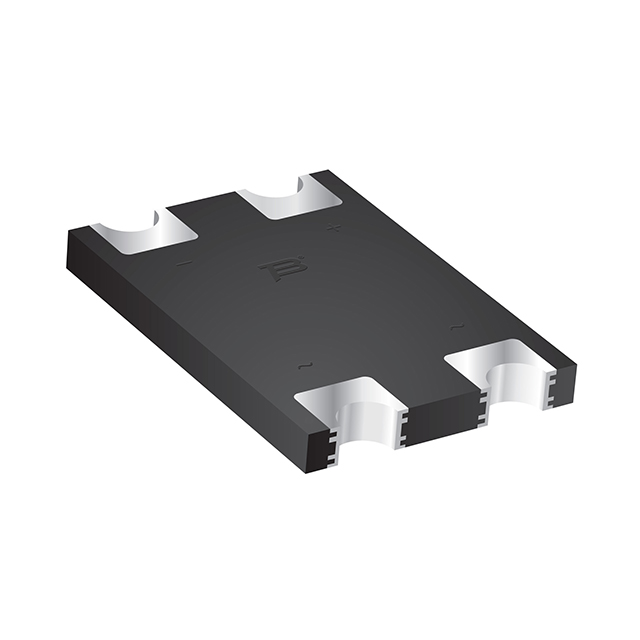

CD-HD Series

Catalog

DIO BR VRRM 100V 2A MBS /TAPE & REEL - 13" REEL

Part	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If
Bourns Inc. CD-HD201	2 A	100 µA	100 V	850 mV	Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount
Bourns Inc. CD-HD006	1 A	200 µA	60 V	700 mV	Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount
Bourns Inc. CD-HD201L	2 A	100 µA	100 V	850 mV	Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount
Bourns Inc. CD-HD01	1 A	200 µA	100 V	850 mV	Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount
Bourns Inc. CD-HD2006	2 A	200 µA	60 V		Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount	700 mV
Bourns Inc. CD-HD2004	2 A	200 µA	40 V		Single Phase	-55 ░C	125 °C	Chip Concave Terminals	Schottky	Surface Mount	500 mV
