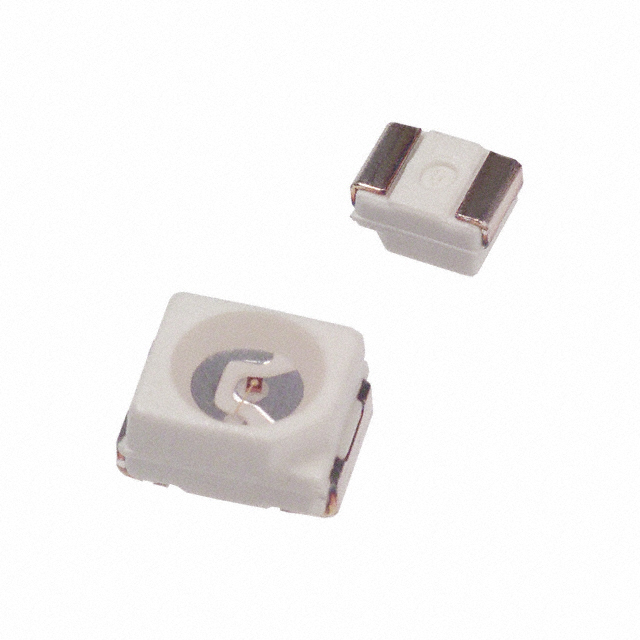

CMD67-21 Series

Catalog

LED RED CLEAR SMD

Part	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Viewing Angle	Configuration	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Lens Size [diameter]	Color	Height (Max) [z]	Supplier Device Package	Package / Case	Mounting Type	Lens Transparency
Visual Communications Company - VCC CMD67-21SRC/TR8	40 mcd 48 mcd	1.7 V 2 V	650 nm 660 nm	120 °	Standard	Round with Flat Top	2.8 mm	3.2 mm	2.39 mm	Red	1.98 mm	SMD	2-PLCC	Surface Mount	Clear
Visual Communications Company - VCC CMD67-21VRC/TR8	10 mcd	2 V	640 nm	120 °	Standard	Round with Flat Top	2.8 mm	3.2 mm	2.39 mm	Red	1.98 mm	SMD	2-PLCC	Surface Mount	Clear
Visual Communications Company - VCC CMD67-21VGC/TR8	25 mcd	2.1 V	570 nm 575 nm	120 °	Standard	Round with Flat Top	2.8 mm	3.2 mm	2.39 mm	Green	1.98 mm	SMD	2-PLCC	Surface Mount	Clear
Visual Communications Company - VCC CMD67-21URC/TR8	62 mcd	1.7 V	660 nm	120 °	Standard	Round with Flat Top	2.8 mm	3.2 mm	2.39 mm	Red	1.98 mm	SMD	4-PLCC	Surface Mount	Clear
