BD95861MUV Series

7.5V To 18V, 1ch Synchronous Buck DC/DC Converter with an r6A Integrated MOSFET

Catalog

7.5V To 18V, 1ch Synchronous Buck DC/DC Converter with an r6A Integrated MOSFET

Part	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Current - Output	Supplier Device Package	Synchronous Rectifier	Output Configuration	Voltage - Input (Max) [Max]	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Function	Voltage - Output (Min/Fixed)	Number of Outputs	Board Type	Supplied Contents	Utilized IC / Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Output [Max]	Voltage - Output [Min]

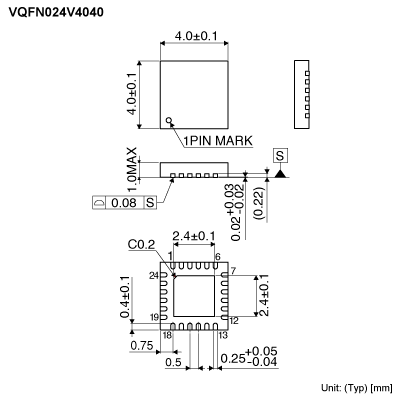

Rohm Semiconductor BD95861MUV-E2	24-VFQFN Exposed Pad	7.5 V	5.5 V	Surface Mount	-20 °C	100 °C	Buck	6 A	VQFN020V4040		Positive	18 V	800 kHz	500 kHz	Adjustable	Step-Down	0.8 V	1

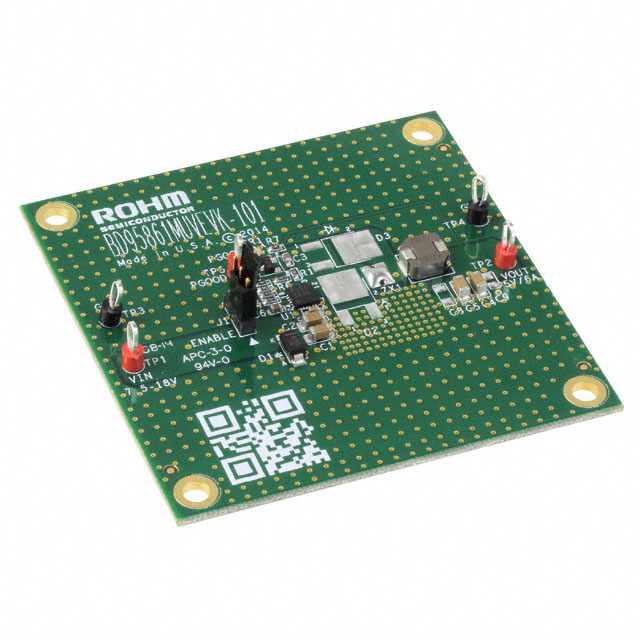

Rohm Semiconductor BD95861MUV-EVK-101								6 A											Fully Populated	Board(s)	BD95861	DC/DC Step Down	7.5 V	18 V	Non-Isolated	1	Buck	5.5 V	0.8 V

Catalog

7.5V To 18V, 1ch Synchronous Buck DC/DC Converter with an r6A Integrated MOSFET

Description
