6302FE Series
Manufacturer: Belden Inc.
Beta
⌘K

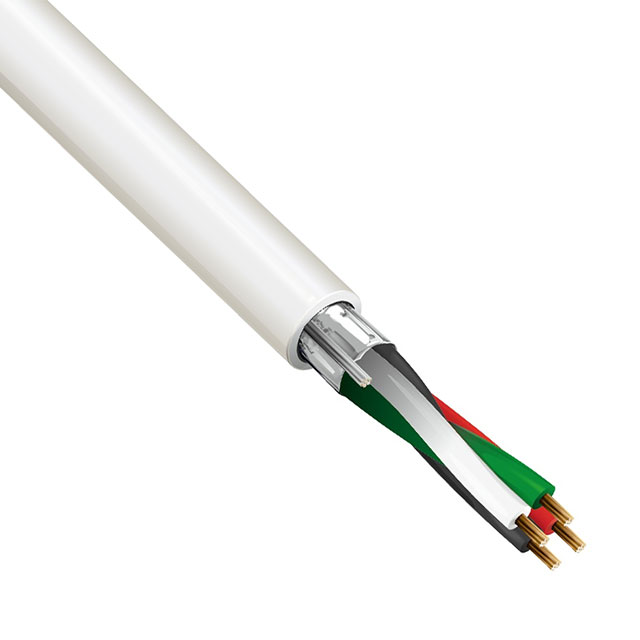

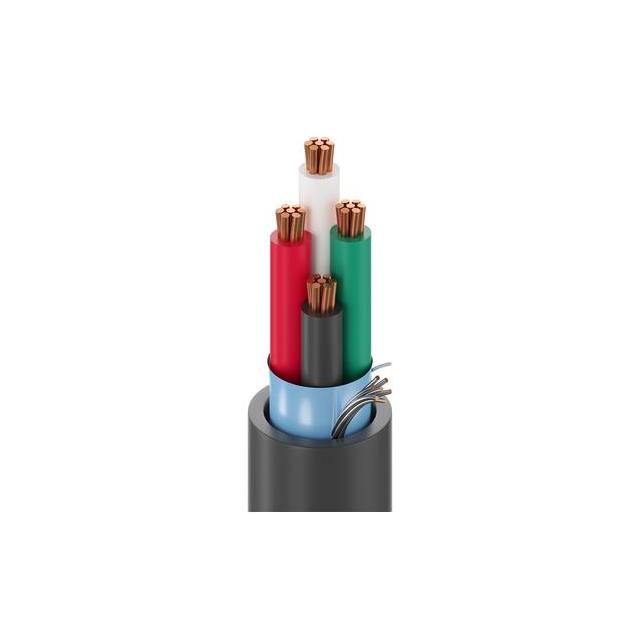

CABLE 4COND 18AWG NAT SHLD
| Part | Shield Coverage | Shield Material | Ratings | Jacket Color | Conductor Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Number of Conductors | Length | Length | Cable Type | Conductor Insulation | Usage | Jacket (Insulation) Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style CMP | Natural | Copper Bare | 18 AWG | 75 ░C | 0 °C | 4.78 mm | 0.188 " | 0.381 mm | 0.015 in | Foil | 26 AWG | 7 | Drain Wire Rip Cord | 4 | 152.4 m | 500 ft | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | Alarm Security Sound | Plenum Poly-Vinyl Chloride (PVC) | |
 Belden Inc. | 100 % | Aluminum | UL Style CMP | Natural | Copper Bare | 18 AWG | 75 ░C | 0 °C | 4.78 mm | 0.188 " | 0.381 mm | 0.015 in | Foil | 26 AWG | 7 | Drain Wire Rip Cord | 4 | 304.8 m | 1000 ft | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC |
